SEAL PLATE REMOVAL/INSTALLATION

id091000889000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

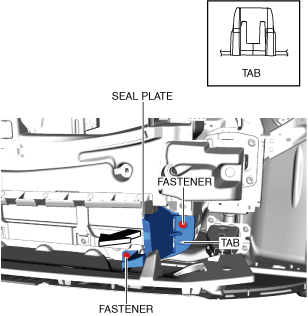

4.  Remove the fasteners.

ac5wzw00011156

5.  Remove the seal plate in the direction of the arrow shown in the figure while detaching the tab.

6.  Install in the reverse order of removal.
