REAR DOOR GLASS REMOVAL/INSTALLATION

id091200000300

1.  Fully open the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

5.  Remove the rear door weatherstrip.

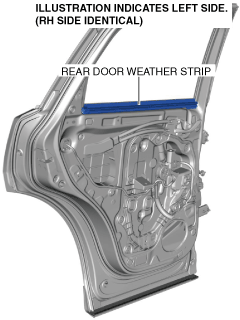

ac5uuw00005989

6.  Remove service hole cover No.1.

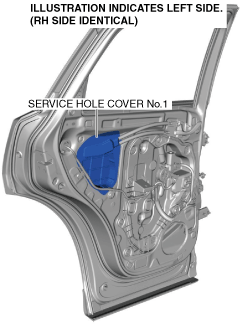

ac5wzw00010484

7.  Remove the bolts.

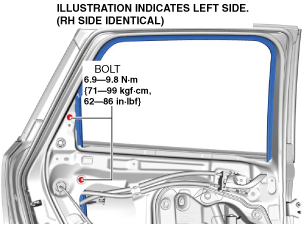

ac5uuw00005991

8.  Partially peel back the rear door glass run channel.

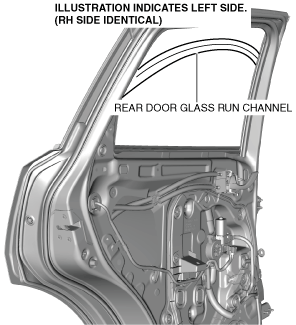

ac5uuw00005992

9.  Insert your hand from the service hole cover No.1 opening, tilt the glass guide in the directions of arrows (1) shown in the figure, and pull it out in the direction of arrow (2) while setting the rear door sash aside.

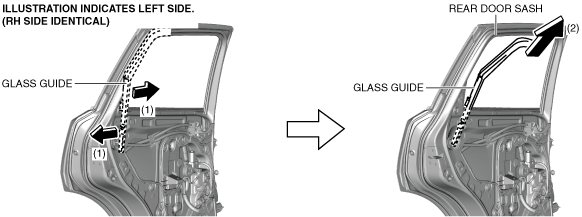

ac5uuw00005993

10.  Move the rear door glass run channel in the direction of the arrow shown in the figure, and remove the rear door glass run channel from the glass guide.

ac5uuw00005994

11.  While pressing the center of service hole cover No.2 in the direction of arrow (1) shown in the figure, pull the rib in the direction of arrow (2) and remove the service hole cover.

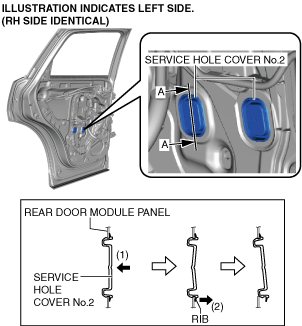

ac5wzw00013829

12.  Remove the bolts while supporting the rear door glass from the rear door speaker installation hole with your hand.

ac5uuw00005996

13.  Hold the upper part of the rear door glass while supporting the rear door glass from the rear door speaker installation hole with your hand.

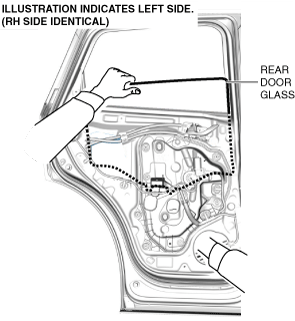

ac5wzw00011828

14.  Lift the rear door glass in the direction of arrow (1) shown in the figure, shift the hand which is supporting the rear door glass from the rear door speaker installation hole to the upper part of the rear door glass, then pull it in the direction of arrow (3) while tilting it in the direction of arrow (2) shown, and remove it from the rear door.

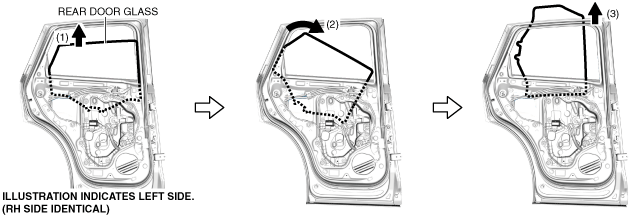

ac5wzw00011829

15.  Install in the reverse order of removal.
