OUTER MIRROR GARNISH REMOVAL/INSTALLATION

id091200003000

Upper Outer Mirror Garnish

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

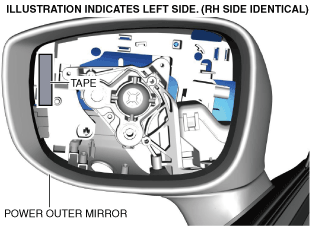

3.  Peel off the tape shown in the figure.

ac5uuw00006058

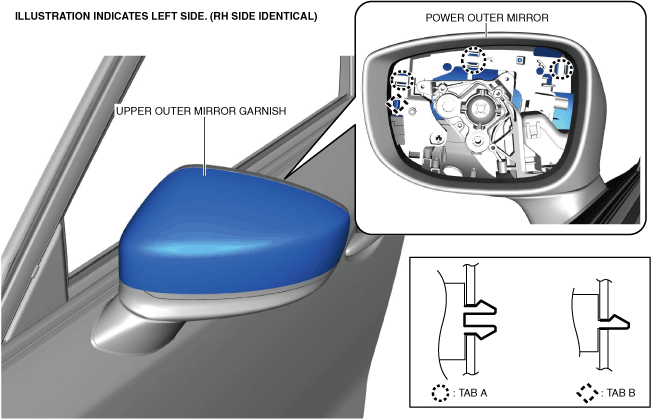

4.  Press tabs A and B shown in the figure to detach them from the outer mirror housing.

ac5uuw00006059

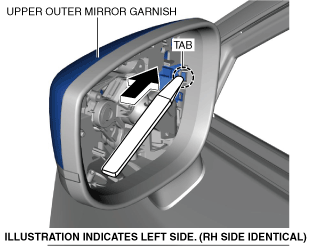

5.  Press the tab of the outer mirror garnish in the direction of the arrow shown in the figure using a remover tool, and detach the tab from the outer mirror housing.

ac5uuw00006060

6.  Move the upper outer mirror garnish in the direction of the arrow shown in the figure and remove it.

ac5wzw00011834

7.  Install in the reverse order of removal.

Lower Outer Mirror Garnish

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Remove the upper outer mirror garnish. (See Upper Outer Mirror Garnish.)

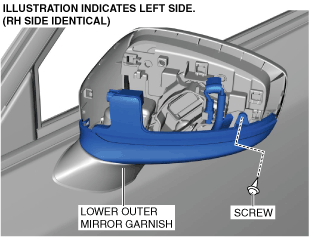

4.  Remove the screw.

ac5wzw00009577

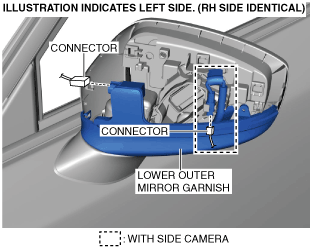

5.  Disconnect the connectors.

ac5wzw00011835

6.  Using a tape-wrapped flathead screwdriver, detach the tabs in the order of tabs A and B while pulling the lower outer mirror garnish in the direction of the arrow shown in the figure.

ac5uuw00006063

7.  Remove the lower outer mirror garnish.

Note

•  If the lower outer mirror garnish is replaced, remove the following parts.

1.  Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)

2.  Side camera (with side camera) (See SIDE CAMERA REMOVAL/INSTALLATION.)

8.  Install in the reverse order of removal.

9.  Perform the side camera aiming. (with side camera) (without 360° view monitor system) (See SIDE CAMERA AIMING.)

10.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
