POWER OUTER MIRROR REMOVAL/INSTALLATION

id091200014200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

3.  Remove front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

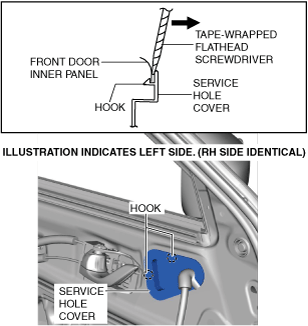

4.  Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and detach the hook from the front door inner panel.

ac5uuw00006020

5.  Remove the service hole cover.

6.  Disconnect the connectors.

ac5wzw00011836

7.  Remove the bolts.

ac5wzw00009579

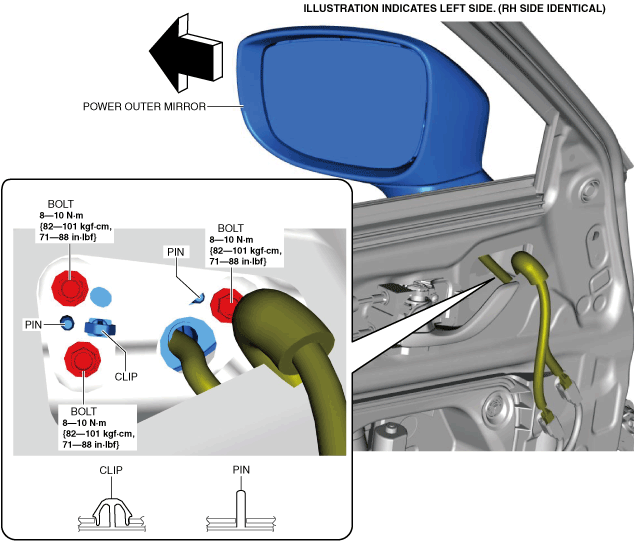

8.  Pull the power outer mirror in the direction shown in the figure and remove it while detaching the clip and pins.

Caution

•  Remove the clip while pressing the power outer mirror by hand. Otherwise, the power outer mirror may fall off and be damaged.

9.  Install in the reverse order of removal. (See Clip Replacement Note.) (See Power Outer Mirror Installation Note.)

10.  Perform the side camera aiming. (with side camera) (without 360° view monitor system) (See SIDE CAMERA AIMING.)

11.  Perform the 360°view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

Clip Replacement Note

Note

•  If the clip is damaged, replace it using the following procedure.

1.  Partially peel back the rubber boot.

ac5uuw00006023

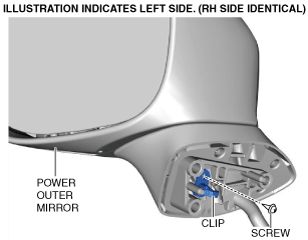

2.  Remove the screw.

ac5uuw00006024

3.  Remove the clip.

4.  Install a new clip.

Power Outer Mirror Installation Note

Caution

•  Route the wiring harness to the backside of the glass guide. If a wiring harness is mistakenly routed, it will interfere with the front door glass when opening/closing the front door glass, and could be damaged.

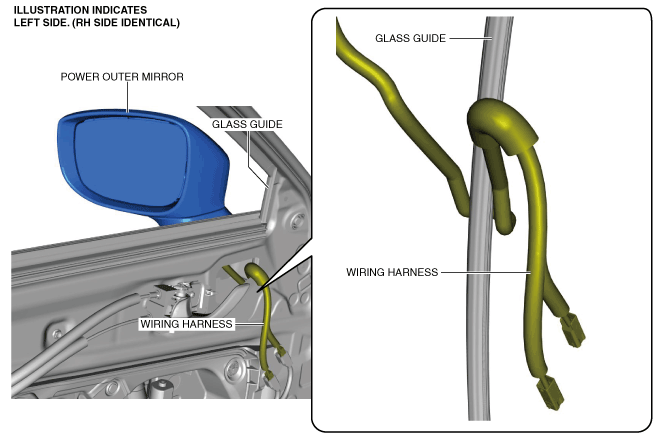

1.  Insert your hand through the front door speaker installation hole and route the wiring harness behind the glass guide.

ac5uuw00006025
