REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION

id091300812200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Fold the rear seat back (LH,RH).

3.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the rear seat center armrest hinge cover in the direction of arrow (2) to detach the rear seat center armrest hinge cover from the rear seat center armrest hinge.

ac5wzw00013755

4.  Remove the rear seat center armrest hinge cover.

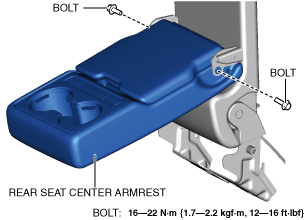

5.  Remove the bolt.

ac5wzw00013756

6.  Disconnect the USB power outlet connector.(with USB power outlet)(See USB POWER OUTLET REMOVAL/INSTALLATION.)

7.  Disconnect the rear seat warmer switch connector.(with rear seat warmer system)(See REAR SEAT WARMER SWITCH REMOVAL/INSTALLATION.)

8.  Install in the reverse order of removal.
