REAR OUTER HANDLE REMOVAL/INSTALLATION

id091400510200

1.  Fully close the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

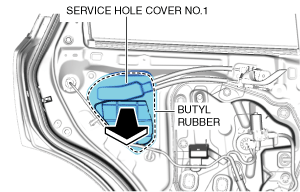

4.  Remove service hole cover No. 1 in the direction of the arrow shown in the figure.

Caution

•   When removing service hole cover No.1, remove it while gradually stripping the butyl rubber. Otherwise service hole cover No.1 may be deformed.

ac5uuw00005868

5.  Remove the service hole cover.

ac5uuw00005869

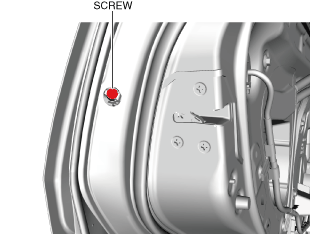

6.  Loosen the screw from the rear outer handle bracket.

ac5uuw00005870

Note

•  The screw cannot be removed because the rear outer handle bracket has a stopper which prevents the screw from falling.

7.  While pressing the rear outer handle bracket tab in the direction of arrow (1) shown in the figure, pull the outer handle garnish in the direction of arrow (2) to detach the rear outer handle bracket from the outer handle garnish.

ac5uuw00005871

8.  Remove the outer handle garnish from the rear outer handle bracket.

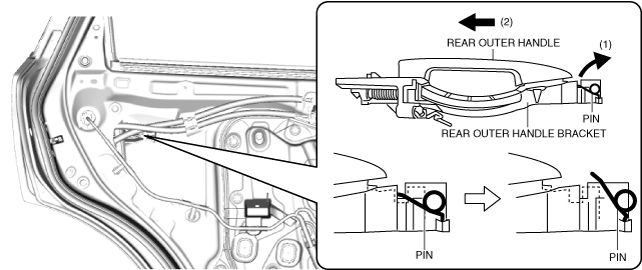

9.  While pulling the rear outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the rear outer handle in the direction of arrow (2) to detach the rear outer handle bracket pin from the rear outer handle.

ac5uuw00005872

10.  Remove the rear outer handle in the direction of the arrow shown in the figure.

ac5uuw00005873

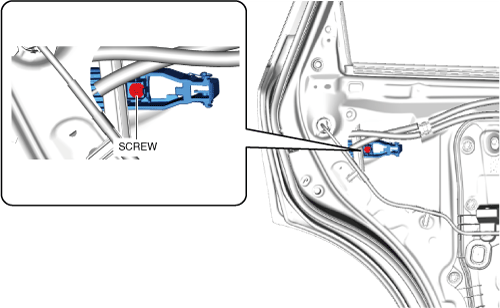

11.  Loosen the screw from the rear outer handle bracket.

ac5uuw00005874

Note

•  The screw cannot be removed because the rear outer handle bracket has a stopper which prevents the screw from falling.

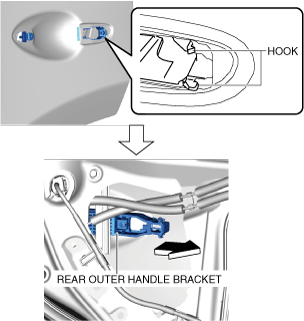

12.  Pull the rear outer handle bracket in the direction of arrow shown in the figure and detach the rear outer handle bracket hooks from the body.

ac5uuw00005875

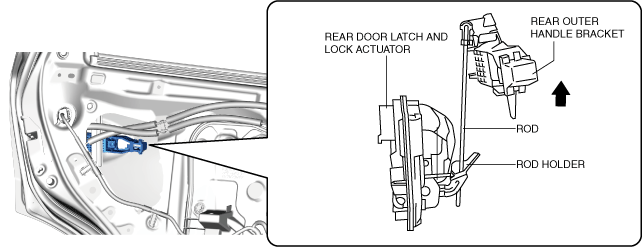

13.  Lift the rear outer handle bracket in the direction of arrow shown in the figure to pull the rod out of the rod holder. (See Rear Outer Handle Bracket Installation Note.)

ac5uuw00005876

14.  Remove the rear outer handle bracket.

15.  Remove the handle seat from the body.

ac5uuw00005877

16.  Install in the reverse order of removal.

Rear Outer Handle Bracket Installation Note

•  To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

ac5uuw00005878
