DOOR LOCK SWITCH INSPECTION

id091400518700

Note

•  The driver's side door lock switch cannot be removed as a single unit because it is built into the power window main switch. If the driver's side door lock switch is replaced, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

Door Lock Switch Inspection (L.H.D.)

Auto-open/close function for driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

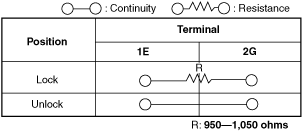

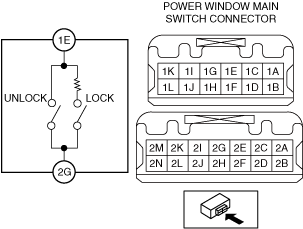

3.  Verify that the continuity is as indicated in the table.

ac5wzw00010222

ac5wzw00010223

•  If the continuity is not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

Auto-open/close function for all windows

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

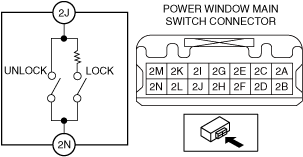

3.  Verify that the continuity is as indicated in the table.

ac5wzw00012691

ac5wzw00012692

•  If the continuity is not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

Door Lock Switch Inspection (R.H.D.)

Auto-open/close function for driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity is as indicated in the table.

ac5wzw00011626

ac5wzw00011627

•  If the continuity is not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

Auto-open/close function for all windows

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity is as indicated in the table.

ac5wzw00012693

ac5wzw00012694

•  If the continuity is not as indicated in the table, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
