KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN)/KEY INDICATION

id091400604100

Purpose

KEY warning light (red)

•  The KEY warning light (red) notifies the driver that the engine cannot be started, the remote transmitter is outside of the vehicle, or that there is a malfunction in the system.

KEY indicator light (green)

•  The KEY indicator light (green) notifies the driver that the engine starting conditions have been met or that the remote transmitter battery voltage is depleted.

KEY indication

•  The KEY indication notifies the driver that there is a malfunction in the system or that the remote transmitter battery voltage is depleted.

Function

KEY warning light (red)

•  When a malfunction is detected in the keyless entry system or advanced keyless entry system, the KEY warning light (red) turns on. (See ON-BOARD DIAGNOSIS SYSTEM [START STOP UNIT].)

―  A warning message in the center display is displayed when the KEY warning light (red) is turned on. For the display content, refer to [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

•  The KEY warning light (red) flashes if the engine cannot be started and when the ignition is switched to ACC or ON (engine off or on) and the transmitter is taken outside of the vehicle. (See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.) (See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)

KEY indicator light (green)

•  When the engine-starting conditions have been met, the KEY indicator light (green) turns on. (See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)

•  If the remote transmitter battery voltage is depleted, the KEY indicator light (green) flashes. (See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.)

―  A warning message in the center display is displayed when the KEY indicator light (green) flashes. For the display content, refer to [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

KEY indication

•  The instrument cluster displays the KEY indication based on the security warning request signal sent from the start stop unit via CAN communication.

•  The instrument cluster displays the KEY indication based on the battery voltage low indication request signal sent from the start stop unit via CAN communication.

―  A message is displayed in the center display simultaneously with the KEY indication. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

Structure/Construction

ac5uun00004143

Operation

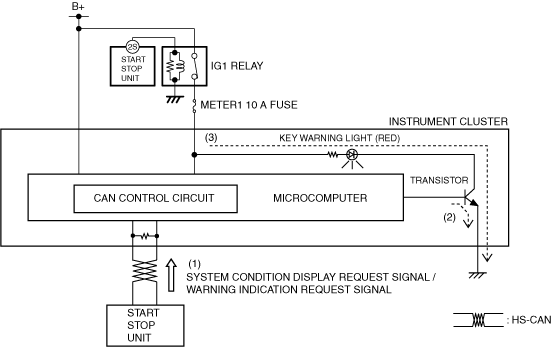

KEY warning light (red)

1.  The instrument cluster receives (1) the system condition display request signal or warning indication request signal from the start stop unit via CAN communication.

2.  The instrument cluster turns the transistor on (2) intermittently for a system condition display request signal and continuously for a warning indication request signal.

3.  When the transistor is turned on intermittently, the KEY warning light (red) flashes (3), and when it is turned on continuously, the KEY warning light (red) turns on (3).

ac9uun00001544

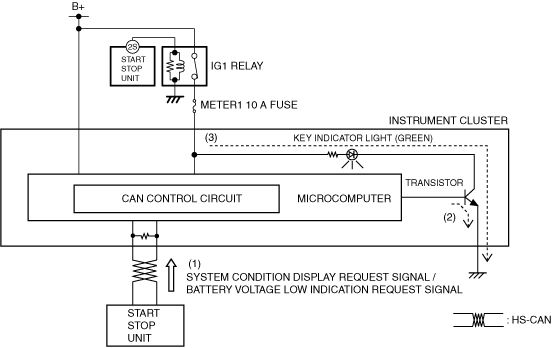

KEY indicator light (green)

1.  The instrument cluster receives (1) the system condition display request signal or battery voltage low indication request signal from the start stop unit via CAN communication.

2.  The instrument cluster turns the transistor on (2) intermittently for a battery voltage low indication request signal and continuously for a system conditions indication request signal.

3.  When the transistor is turned on intermittently, the KEY indicator light (green) flashes (3), and when it is turned on continuously, the KEY indicator light (green) turns on (3).

ac9uun00001545

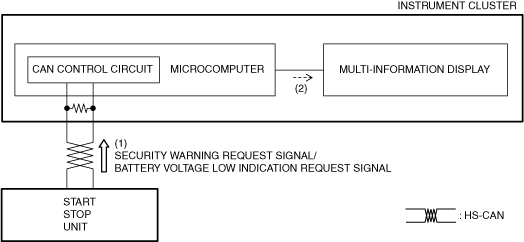

KEY indication

1.  The instrument cluster receives (1) the security warning request signal or battery voltage low indication request signal from the start stop unit via CAN communication.

2.  The instrument cluster displays (2) the KEY indication on the multi-information display based on the security warning request signal/battery voltage low indication request signal.

ac9uun00001542
