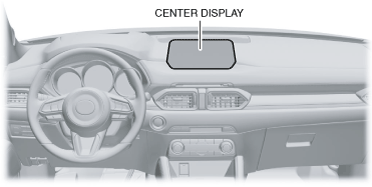

CENTER DISPLAY [WITH CENTER DISPLAY]

id0920zz113600

Note
•  iPod, iPhone, and Apple CarPlay are registered trademarks of Apple Inc.
•  Android, and Android Auto are registered trademarks of Google LLC.
•  iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used underlicense.

Purpose

•  The center display displays entertainment system and vehicle information.

Function

•  The center display displays video images based on the signal sent by the LVDS*1 signal from the connectivity master unit (CMU).
•  The center display is touch-type LCD. The display touch position information is sent by LVDS*1 signal to the CMU.
•  The LVDS communication pathway between the CMU and the center display corresponds to HDCP*2.
*1   :Low-Voltage Differential Signaling indicates the electrical characteristics of the signal. LVDS is a digital, wired transmission technology for the short range which adopts a differential interface having the characteristics of low voltage and low power consumption.
*2   :HDCP (High-bandwidth Digital Content Protection system) is a copyright protection technology which prevents content from being copied fraudulently. The pathway in a display device such as a display, which sends/receives digital signals from a video playback device such as a computer, is encrypted.

Temperature detection function

•  The center display detects temperature using a temperature sensor.
•  The center display converts the temperature detected by the temperature sensor to an electrical signal (LVDS signal) and sends it to the CMU.
Note
•  If the center display receives a temperature warning pop-up screen display request signal (LVDS signal) from the CMU, it displays the temperature warning pop-up screen on the LCD.


Display information

•  The information displayed by the center display is as follows: Refer to the referenced section for details of the displayed information.

Display content

Reference
Home screen
(See Home screen.)
Application screen
(See Applications screen.)
Entertainment screen
(See Entertainment screen.)
Communication screen
(See Communication screen.)
Navigation screen
(See Navigation screen.)
Setting screen
(See Settings screen.)


Home screen

•  The home screen displays entertainment system information.
•  When the ignition is switched to ACC or ON (engine off or on), the home screen is displayed in the center display.
ac5wzn00005508

Display area
Button name
1
Applications
2
Entertainment
3
Communication
4
Navigation*3
5
Settings
6
Apple CarPlay™*4
Android Auto™*5

*3   :With car-navigation system
*4   :When Apple CarPlay™ is available.
*5   :When Android Auto™ is available.


Applications screen

•  Information concerning fuel economy, maintenance, and warnings can be verified.
ac9wzn00001229

Display content

Reference
Fuel Economy Monitor
(See Fuel Economy Monitor.)
Vehicle Status Monitor
(See Warning guidance.)
(See MAINTENANCE MONITOR [WITH CENTER DISPLAY].)


Fuel Economy Monitor

•  Displays the fuel economy and i-ELOOP system information.
Fuel economy monitor verification procedure
1.  Select the [Applications] button on the Home screen.
2.  Select [Fuel Economy Monitor] on the Applications screen to display the warning guidance.
ac9wzn00001230
•  The buttons on the menu screen operate as follows.

Display

Content
1
Switches the menu screen to non-display.
2
Displays the application menu screen.
3
•   Switches the fuel economy monitor display in the following order.
―  Control Status
―  Fuel Consumption
―  Effectiveness
4
Resets the fuel economy data.
5
•  Displays the following setting screen.
―  Ending screen on/off switching
―  On/off switching for function which synchronizes reset fuel economy data to trip meter.

Control Status
•  The i-stop operation status and the i-ELOOP power generating status are displayed.

With i-ELOOP system

Display

Content

Reference
1
Displays the level of electricity generated by regenerative braking.
(See i-ELOOP [i-ELOOP].)
(See i-stop CONTROL.)
2
Displays the amount of the electricity stored in the capacitor.
3
Displays the status of the electricity stored in the capacitor and being supplied to the electrical devices (whole vehicle in display is illuminated simultaneously).
4
Displays the accumulated fuel economy.
5
Displays the readiness status as to whether operation of the i-stop function is available.
6
Displays the operation readiness status of the i-stop function on the vehicle side (engine, battery, and A/C) using icon colouring. The blue colour indicates that the i-stop function is ready to operate, and the grey colour indicates that it is not ready for operation.
7
Displays the i-stop function status while the vehicle is stopped.
8
Indicates the operations required by the driver to operate the i-stop function while it is not operating.
9
Time active
•  Time active is displayed as the time at which the i-stop is operating.
Total time
•  i-stop total time is displayed as the total time at which the i-stop has operated.

Without i-ELOOP system

Display

Content

Reference
1
Displays the readiness status as to whether operation of the i-stop function is available.
—
2
Displays the operation readiness status of the i-stop function on the vehicle side (engine, battery, and A/C) using icon colouring. The blue colour indicates that the i-stop function is ready to operate, and the grey colour indicates that it is not ready for operation.
3
Displays the i-stop function status while the vehicle is stopped.
4
Indicates the operations required by the driver to operate the i-stop function while it is not operating.
5
Time active
•  Current i-stop time is displayed i-stop time at which the i-stop is operating.
Total time
•  i-stop total time is displayed as the total time at which the i-stop has operated.

Fuel Consumption
•  The information regarding the fuel economy is displayed.

Display

Content

Reference
1
•  Displays the fuel economy for the past 60 minutes.
―  Displays the fuel economy every minute for the past 1 to 10 minutes.
―  Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.
—
2
Displays the average fuel economy over the past 5 resets and after the current reset.
3
•  Displays the average fuel economy from when the ignition is switched ON (engine on) to the current time.
•  The average fuel economy is updated every 60 s.
•  If there is no average fuel economy data, displays “——”.

Effectiveness
•  The actual performance of the energy efficiency is displayed.

With i-ELOOP system and i-stop function

Display

Content

Reference
1
The leaf graphic grows according to the amount of CO2 emissions reduced by the system effects. The cumulative total amount of leaf growth is indicated in terms of the number of tree graphics.
—
2
Displays the total driving distance which could be extended by the operation of the i-stop function.
3
Displays the percentage of time that the vehicle was stopped by the i-stop function operation out of the total amount of time that the vehicle was stopped.
4
Displays the amount of time that the i-stop function has operated.
5
Displays the total amount of time that the vehicle was stopped.


Warning guidance

•  When the center display receives a warning guidance display signal (LVDS signal) from the CMU, it displays the warning guidance screen.
Note
•  Display method of the warning guidance varies depending on the emergency level.
Pop-up display
―  Warning message of a higher emergency level is displayed on the pop-up screen at the time the warning occurred regardless of the display content of the center display. When “OK” on the pop-up screen is selected, it switches to the previous screen before the pop-up display. The pop-up display warning can also be verified in the warning guidance list.
List display
―  Warning messages displayed by methods other than pop-up display can be verified in the warning guidance screen.
Warning guidance verification procedure
1.  Select the [Applications] button on the Home screen.
2.  Select [Vehicle Status Monitor] on the Applications screen.
ac9wzn00001236
3.  Select [Warning Guidance] on the Vehicle Status Monitor screen to display the warning guidance.
ac9uun00001181
4.  Select a desired warning from the warning guidance screen.
am3uun00003489
Note
•  If there is no warning, No Warnings found is displayed on the warning guidance screen.
am3uun00003499

Pop-up display

Screen display

Send module

Reference

Pop-up screen

List display

Title

Message
Charging System Malfunction
Charging System Malfunction.
Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.
PCM
(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.5T].)
(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
i-ELOOP Charging
i-ELOOP is charging.
With the Engine running, check that charging is complete and the Warning Indicator is Off. Have the vehicle checked by a dealer if this Indicator stays On.
PCM
(See i-ELOOP [i-ELOOP].)
Engine Coolant Temperature High
Engine is Overheating.
Stop the vehicle immediately in a safe place, turn Off the engine, and take proper actions. Refer to the Owner's Manual.
Instrument cluster
(See HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)/HIGH ENGINE COOLANT TEMPERATURE WARNING INDICATION/LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE).)
—*4
—*4
CMU/center display
—

*4   :Because the temperature warning is not displayed in the list, it cannot be verified using the list.

List display

Screen display

Send module

Reference

Warning light

Title

Message
Low Engine Oil Pressure
Low Engine Oil Pressure.
Stop the vehicle immediately in a safe place, turn Off the Engine, and inspect the Engine Oil Level. Add Oil if necessary.
Have the vehicle checked by a dealer immediately if this Indicator turns On after adding Oil or the Engine Oil Level is OK.
PCM
(See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
i-ELOOP System Malfunction
i-ELOOP System Malfunction.
Have the vehicle checked by a dealer if this indicator stays On.
PCM (i-ELOOP)
(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
Low Brake Fluid
Brake Fluid Level is Low.
Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.
Front body control module (FBCM)
(See BRAKE SYSTEM/ABS WARNING LIGHT.)
Brake System Malfunction
Brake Fluid Level is Low or Brake System Malfunction.
Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.
DSC HU/CM
Brake System Malfunction
Regenerative Braking or Electronically-Controlled Brake System Malfunction.
Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.
DSC HU/CM
Brake System Malfunction
Electronically-Controlled Brake System Malfunction.
Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.
DSC HU/CM
Electric parking brake malfunction
A malfunction has occurred in the parking brake system.
Consult your Mazda Dealer for inspection.
Electric parking brake control module
(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
Engine Coolant Temperature High
Engine is starting to run Hot.
Drive slowly or stop the vehicle until the Indicator stops Flashing. If it keeps Flashing, even after stopping the vehicle, take proper actions. Refer to the Owner's Manual.
Instrument cluster
(See HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)/HIGH ENGINE COOLANT TEMPERATURE WARNING INDICATION/LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE).)
PM Accumulation in DPF
The Particulate Matter (PM) collected in the Diesel Particulate Filter (DPF) has exceeded the Regulation Value.
Drive for about 10 to 15 minutes with the Engine Fully Warmed-Up (Blue Temp Light Off) at a speed of 10 mph (15km/h) or more to eliminate the PM. Have the vehicle checked by a dealer if this indicator stays on.
PCM
(See DIESEL PARTICULATE FILTER INDICATION/DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
DPF Error
Diesel Particulate Filter (DPF) Malfunction.
Have the vehicle checked by a dealer.
PCM
Road Surface Icing Caution
Outside Temperature is 4°C or Lower.
Watch for Icy Road Surfaces while driving.
Instrument cluster
(See AMBIENT TEMPERATURE DISPLAY.)
Low Fuel
Fuel Tank Level is Low.
Refuel the vehicle soon.
Instrument cluster
(See LOW FUEL WARNING LIGHT/LOW FUEL WARNING INDICATION.)
Power Steering System Error
Electric Power Steering Malfunction.
Stop the vehicle in a safe place and turn Off the Engine. Have the vehicle checked by a dealer if this Indicator stays On.
EPS control module
(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
Engine System Malfunction
Engine System Malfunction.
Have the vehicle checked by a dealer immediately.
PCM
(See CHECK ENGINE LIGHT [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].)
(See CHECK ENGINE LIGHT [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].)
(See CHECK ENGINE LIGHT [PCM (SKYACTIV-G 2.5T)].)
(See CHECK ENGINE LIGHT [PCM (SKYACTIV-D 2.2)].)
Safety Restraint System Error
Airbag/Seatbelt Malfunction.
Have the vehicle checked by a dealer immediately.
SAS control module
(See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [STANDARD DEPLOYMENT CONTROL SYSTEM].)
ABS Malfunction
Anti-lock brake system (ABS) malfunction.
Have the vehicle checked by a dealer immediately.
DSC HU/CM
(See BRAKE SYSTEM/ABS WARNING LIGHT.)
DSC Malfunction
Dynamic stability control (DSC) or traction control system (TCS) malfunction.
Have the vehicle checked by a dealer immediately.
DSC HU/CM
(See TCS/DSC INDICATOR LIGHT.)
DSC Malfunction
Dynamic Stability Control (DSC), Traction Control System (TCS), or Hill Launch Assist (HLA) Malfunction.
Have the vehicle checked by a dealer immediately.
BSM Malfunction
Blind Spot Monitoring (BSM)/Rear Cross Traffic Alert (RCTA) Malfunction.
Check for abnormalities in the Rear Bumper Surface and clean if dirty or covered with snow. Have the vehicle checked by a dealer if this Indicator stays On.
Blind spot monitoring (BSM) control module
(See BLIND SPOT MONITORING (BSM) SYSTEM.)
AFS Malfunction
Adaptive Front-lighting System (AFS) Malfunction. Have the vehicle checked by a dealer if this Indicator keeps Flashing.
AFS control module
(See ADAPTIVE FRONT LIGHTING SYSTEM (AFS).)
4WD System Inspection
The Differential Oil Temperature is Abnormally High or a Large Rotational Difference has occurred in the Front and Rear Tires (such as when trying to get out from mud).
Stop the vehicle in a safe place and continue to drive after the Warning Indicator has turned Off.
Have the vehicle checked by a dealer if this Indicator stays On.
4WD control module
(See 4WD WARNING LIGHT.)
4WD System Malfunction
4WD System Malfunction or Tire Size is different between the Front and Rear Tires.
Have the vehicle checked by a dealer.
4WD control module
(See 4WD WARNING LIGHT.)
Low Tire Air Pressure
Low Tire Air Pressure in one or more Tires.
Check the Air Pressure of the Tires and adjust to the correct Air Pressure. Press the TPMS SET switch after adjusting the Tire Pressure until you hear a Beep.
DSC HU/CM
(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
TPMS System Malfunction
Tire Pressure Monitoring System (TPMS) Malfunction.
Have the vehicle checked by a dealer.
DSC HU/CM
(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
i-Stop System Malfunction
i-stop operation is not possible.
Have your vehicle checked at a Mazda dealer.
PCM
(See i-stop INDICATOR LIGHT (GREEN) [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop WARNING LIGHT (AMBER) [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop INDICATOR LIGHT (GREEN) [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop WARNING LIGHT (AMBER) [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.5T].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5T].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
Key Battery Low
Key Battery is Low.
Replace the key Battery immediately.
Start stop unit
(See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN)/KEY INDICATION.)
Keyless Entry Malfunction
Keyless Entry System Malfunction.
Have the vehicle checked by a dealer.
Start stop unit
Headlight System Malfunction
A malfunction has occurred in the headlight system.
If the warning light blinks continuously, consult your Mazda Dealer.
AFS control module/adaptive LED headlights control module/front body control module (FBCM)
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
Auto. Transmission Malfunction
Automatic Transmission Malfunction.
Damage to the vehicle may occur if you continue to drive. Have the vehicle checked by a dealer immediately.
TCM
(See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL, FW6AX-EL].)
(See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL, GW6AX-EL].)
Battery Mgmt. Sys. Malfunction
Battery Management System Malfunction.
Have the vehicle checked by a dealer.
PCM
(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
Brake Override Sys. Malfunction
Brake Switch Malfunction.
Have the vehicle checked by a dealer immediately.
PCM
SCBS Malfunction
Smart City Brake Support (SCBS) Malfunction.
Have the vehicle checked by a dealer immediately.
FSC
(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
SCBS Malfunction
Smart City Brake Support (SCBS) Malfunction.
Clean the Front Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
FSC
SCBS Unavailable
Smart City Brake Support (SCBS) currently unavailable.
FSC
MRCC Malfunction
Mazda Radar Cruise Control (MRCC) Malfunction.
Have the vehicle checked by a dealer.
Radar unit
(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
SBS Malfunction
There is an error in the SBS System.
Have your vehicle checked at a Mazda dealer.
Radar unit
(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
DRSS Malfunction
There is an error in the DRSS System.
Have your vehicle checked at a Mazda dealer.
Radar unit
(See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
SBS/MRCC Radar Malfunction
The SBS/MRCC Radar (Sensor) is soiled. Clean the entire surface of the Radar (Sensor).
Radar unit
(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
SBS/MRCC/DRSS Radar Malfunction
The SBS/MRCC/DRSS Radar (Sensor) is soiled.
Clean the entire surface of the Radar (Sensor).
Radar unit
(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
(See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
MRCC Unavailable
Mazda Radar Cruise Control (MRCC) currently unavailable.
Radar unit
(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
SBS Brake Unavailable
SBS Brake currently unavailable.
Radar unit
(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
SBS Brake/MRCC Unavailable
SBS Brake/MRCC currently unavailable.
Radar unit
(See SMART BRAKE SUPPORT (SBS).)
(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
LDWS Malfunction
Lane Departure Warning System (LDWS) Malfunction.
Have the vehicle checked by a dealer.
FSC
(See LDWS WARNING INDICATION.)
LAS Malfunction
Lane-keep Assist System (LAS) Malfunction.
Have the vehicle checked by a dealer.
FSC
(See LANE-KEEP ASSIST SYSTEM.)
HBC Malfunction
High Beam Control (HBC) Malfunction. Have the vehicle checked by a dealer.
FSC
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
ALH Malfunction
Adaptive LED Headlights (ALH) Malfunction. Have the vehicle checked by a dealer.
FSC
(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
HBC/LDWS Camera Malfunction
High Beam Control (HBC)* and/or Lane Departure Warning System (LDWS)* Malfunction. Clean the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
*Existence of these features depends on models/trim levels.
FSC
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
(See LDWS WARNING INDICATION.)
HBC/LAS Camera Malfunction
High Beam Control (HBC)/Lane-keep Assist System (LAS) Malfunction. Clean the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
(See LANE-KEEP ASSIST SYSTEM.)
ALH/LDWS Camera Malfunction
Adaptive LED Headlights (ALH)/Lane Departure Warning System (LDWS) Malfunction.
Clean the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
(See LDWS WARNING INDICATION.)
ALH/LAS Camera Malfunction
Adaptive LED Headlights (ALH)/Lane-keep Assist System (LAS) Malfunction.
Clean the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
(See LANE-KEEP ASSIST SYSTEM.)
HBC/LDWS System Malfunction
High Beam Control (HBC)* and/or Lane Departure Warning System (LDWS)* Malfunction. Have the vehicle checked by a dealer if this Indicator stays On.
*Existence of these features depends on models/trim levels.
FSC
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
(See LDWS WARNING INDICATION.)
HBC/LAS System Malfunction
High Beam Control (HBC)/Lane-keep Assist System (LAS) Malfunction. Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
(See LANE-KEEP ASSIST SYSTEM.)
ALH/LDWS System Malfunction
Adaptive LED Headlights (ALH)/Lane Departure Warning System (LDWS) Malfunction.
Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
(See LDWS WARNING INDICATION.)
ALH/LAS System Malfunction
Adaptive LED Headlights (ALH)/Lane-keep Assist System (LAS) Malfunction.
Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
(See LANE-KEEP ASSIST SYSTEM.)
HBC/LDWS System Malfunction
High Beam Control (HBC)* and/or Lane Departure Warning System (LDWS)* Malfunction.
Defrost the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
*Existence of these features depends on models/trim levels.
FSC
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
(See LDWS WARNING INDICATION.)
HBC/LAS System Malfunction
High Beam Control (HBC)/Lane-keep Assist System (LAS) Malfunction.
Defrost the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
(See LANE-KEEP ASSIST SYSTEM.)
ALH/LDWS System Malfunction
Adaptive LED Headlights (ALH)/Lane Departure Warning System (LDWS) Malfunction.
Defrost the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
(See LDWS WARNING INDICATION.)
ALH/LAS System Malfunction
Adaptive LED Headlights (ALH)/Lane-keep Assist System (LAS) Malfunction.
Defrost the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.
FSC
(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
(See LANE-KEEP ASSIST SYSTEM.)
SCBS Unavailable
Smart City Brake Support system is temporarily disabled due to excessive heat in the passenger compartment.
The Smart City Brake Support system will be enabled once the passenger compartment has cooled sufficiently.
FSC
(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
LDWS Unavailable
Lane Departure Warning System is temporarily disabled due to excessive heat in the passenger compartment.
The Lane Departure Warning System will be enabled once the passenger compartment has cooled sufficiently.
FSC
(See LDWS WARNING INDICATION.)
LAS Unavailable
Lane-Keep Assist System is temporarily disabled due to excessive heat in the passenger compartment.
The Lane-Keep Assist System will be enabled once the passenger compartment has cooled sufficiently.
FSC
(See LANE-KEEP ASSIST SYSTEM.)
HBC Unavailable
High Beam Control is temporarily disabled due to excessive heat in the passenger compartment.
The High Beam Control will be enabled once the passenger compartment has cooled sufficiently.
FSC
(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
Vehicle System Malfunction
Vehicle system malfunction.
Have the vehicle checked by a dealer.
PCM
(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
Sedimenter Inspection
The amount of water accumulated in the Sedimenter exceeds the rated amount.
Have the vehicle checked by a dealer if this Indicator stays On.
PCM
(See WRENCH INDICATION/WRENCH INDICATOR LIGHT [SKYACTIV-D 2.2].)
Glow Plugs Preheating
Glow Plugs are Preheating. Have the vehicle checked by a dealer if this Indicator stays On.
PCM
(See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
Low Washer Fluid
Washer fluid level is low.
Refill the washer fluid.
Front body control module (FBCM)
(See WASHER FLUID-LEVEL SENSOR.)


Apple CarPlay™

Apple CarPlay™ home screen display procedure
•  The Apple CarPlay™ home screen is displayed when any of the following operations are performed.
―  Select [Applications] on home screen and then select [Apple CarPlay™] on applications screen.
―  Select [Entertainment] on home screen and then select [Apple CarPlay™] on entertainment screen.
―  Select [Apple CarPlay™] on home screen.
―  Long-press center display/commander switch HOME button.
•  The display content is as follows.

Apple CarPlay™ mode home screen

Display

Content
1
Launch the Apple CarPlay™ application.
2
Display the center display home screen.
3
Display the Apple CarPlay™ home screen.


Android Auto™

Android Auto™ home screen display procedure
•  The Android Auto™ home screen is displayed when any of the following operations are performed.
―  Select [Applications] on home screen and then select [Android Auto™] on applications screen.
―  Select [Entertainment] on home screen and then select [Android Auto™] on entertainment screen.
―  Select [Android Auto™] on home screen.
―  Long-press center display/commander switch HOME button.
•  The display content is as follows.

Android Auto™mode home screen

Display

Content
1
Displays the use history of each application. The displayed contents differdepending on the application that has been started and its status.
2
Switches to the map application.
3
Switches to the call mode.
4
Displays the Android Auto™ home screen.
5
Switches to the Music application.
5
Switches to the Mazda Connect home screen.


Entertainment screen

•  When the entertainment button on the home screen is selected, the entertainment screen is displayed. The following audio functions in the table below are available.
ac9uun00001053

Display content

Function
FM
Switches to FM radio screen.
AM
Switches to AM radio screen.
Pandora® Radio
Switches to Pandora® screen.
Note
•  Pandora® is not displayed in gray even if the connected mobile device is not compatible with Pandora®.
Stitcher™
Switches to Stitcher™.
Note
•  Stitcher™ is not displayed in gray even if the connected mobile device is not compatible with Stitcher™.
Aha™ Radio
Switches to Aha™ radio screen.
Note
•  Aha™ radio is not displayed in gray even if the connected mobile device is not compatible with Aha™ radio.
Bluetooth®<Device Name>
Switches to Bluetooth® audio screen.
Note
•  If available, the connecting device name is displayed. When Bluetooth® is not available, such as no device is connected, only Bluetooth® is displayed.
USB1<Device Name>
Switches to USB audio screen.
Note
•  If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.
USB2<Device Name>
Switches to USB audio screen.
Note
•  If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.
AUX
Switches to AUX screen.

Note
•  Items requiring media, such as CDs or AUX, are displayed in gray and not available if connection of the media cannot be detected.


Communication screen

•   SMS (Short Message Service), and Hands-free telephone (HF/TEL) functions can be used.
aaxjjn00003204

Display content

Function
Active Call
Switches to the incoming call screen. (when receiving an incoming call)
Notifications
Switches to the notification screen.
Note
•  When there is no notification, displayed in gray and not available.
Favorites
Switches to the favorite screen.
Contacts
Displays the phone book.
Call History
Displays the call history.
Dial Phoned
Switches to the dial screen for phone number input.
SMS
Switches to the SMS screen.
Setting
Switches ON/OFF of the SMS notification function.

Note
•  If Bluetooth® communication is not established between a mobile device such as a Bluetooth®-enabled smart phone, the functions dependent on the mobile device are displayed in gray and they are not available.
•  IF there any unread notification or SMS, the number of unread messages is displayed beside each item name. The number of missed call is displayed next to “Call History”.


Navigation screen

•  When the navigation button on the home screen is selected, the navigation screen is displayed. Navigation information such as the current position and route guidance to destination is displayed on this screen.


Settings screen

•  The following settings can be changed. For details, refer to the [ENTERTAINMENT SYSTEM] setting function. (See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)
am3zzn00004421

Tab

Reference
AD-Disp
(See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)
Active driving display setting
Display
Display setting
Safety
Personalization setting function (vehicle setting)
Sound
Sound setting
Clock
Clock setting
Vehicle
Personalization setting function (vehicle setting)
Devices
Bluetooth® pairing
System
System setting


Structure/Construction

•  The center display is installed in the center of the dashboard.
•  The center display has a built-in temperature sensor.
ac5wzn00003990

Input/output signal table

Terminal

Signal
1A
—
1B
Ground
1C
—
1D
—
1E
—
1F
—
1G
ACC
1H
B+
2A
—
2B
LVDS (+)
2C
—
2D
LVDS (-)


Fail-safe

•  Not applicable
