COWL GRILLE REMOVAL/INSTALLATION

id091600801000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

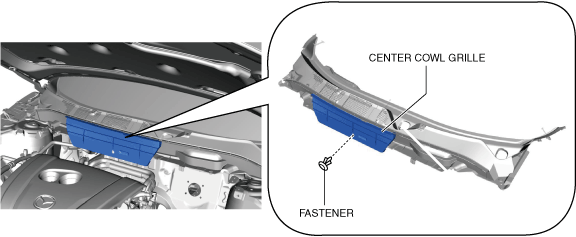

2.  Remove the fastener. (With center cowl grille)

ac5wzw00011342

3.  Remove the center cowl grille. (With center cowl grille)

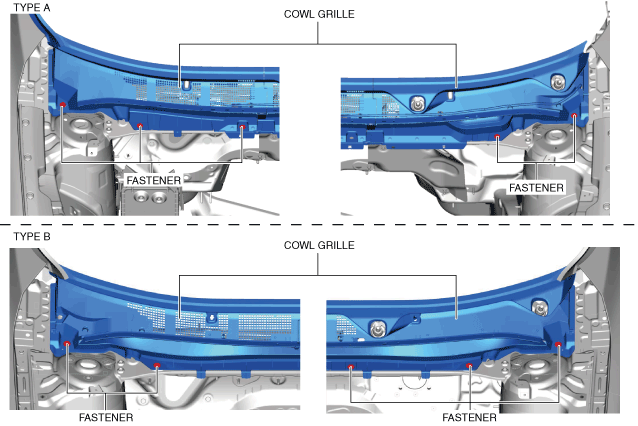

4.  Remove the fasteners.

ac5wzw00011049

5.  Disconnect the joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)

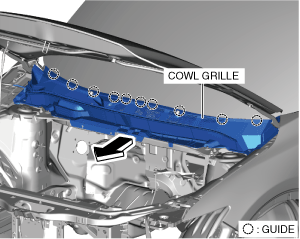

6.  Pull the cowl grille in the direction of the arrows shown in the figure and detach the guides from the windshield.

ac5wzw00011050

7.  Install in the reverse order of removal.
