REAR CONSOLE DISASSEMBLY/ASSEMBLY
id091700898600

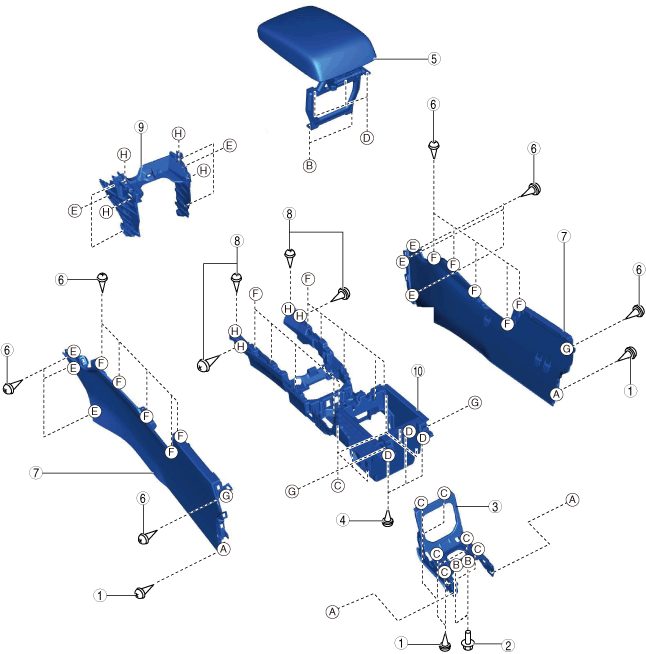

1. Disassemble in the order shown in the figure.
ac5wzw00013213
|
|
1
|
Screw
|
|
2
|
Bolt
|
|
3
|
Rear console bracket No.2
|
|
4
|
Screw
|
|
5
|
Console lid
|
|
6
|
Screw
|
|
7
|
Side panel
(See Side Panel Removal Note.)
|
|
8
|
Screw
|
|
9
|
Rear console cover
|
|
10
|
Rear console box
|
2. Assemble in the reverse order of disassembly.
Side Panel Removal Note

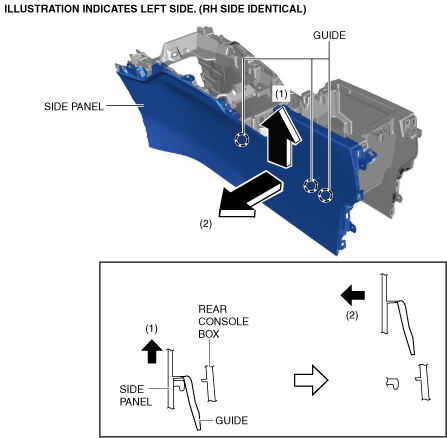

1. Move the side panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.
