CUP HOLDER REMOVAL/INSTALLATION

id091700969100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

3.  Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION.)

4.  Open the console lid and remove the storage box.

ac5uuw00005327

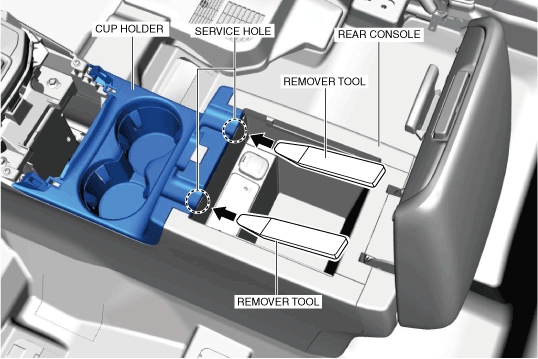

5.  Insert the remover tools into the service holes.

ac5uuw00005328

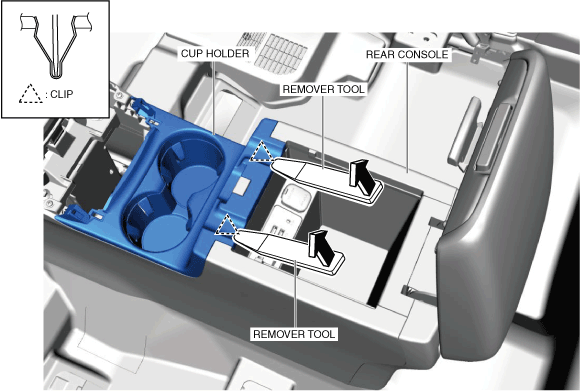

6.  Move the remover tools in the direction of the arrows shown in the figure and detach the clips from the rear console.

ac5uuw00005329

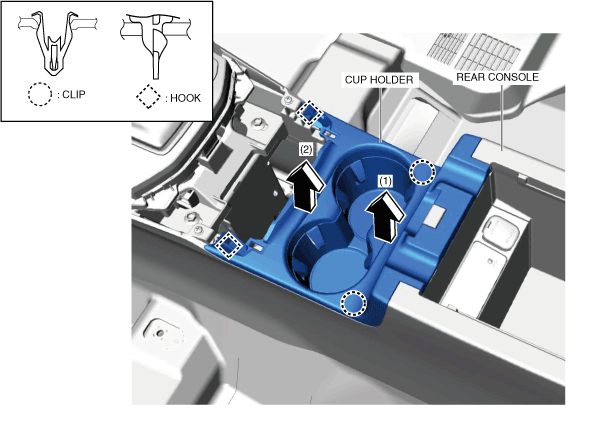

7.  Move the cup holder in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and hooks.

ac5uuw00005330

8.  Install in the reverse order of removal.
