EXTERIOR LIGHTING SYSTEM

id091800400500


Outline

•  Projector type headlights have been adopted to the front combination lights.
•  Auto light system has been adopted in which TNS (parking lights), headlight LO, and panel light automatically and optimally illuminate and turn off. (with auto light system)
•  A headlight auto leveling system has been adopted which automatically adjusts the headlight optical axis up and down.
•  A coming home light has been adopted which turns on the headlight LO for a specified time using the flash-to-pass operation.
•  A leaving home light has been adopted which turns on the TNS (parking lights) and headlight LO for a specified time by operating the unlock button on the remote transmitter.
•  Front fog lights have been adopted in the front bumper. (with front fog lights)
•  Rear fog light has been adopted in the rear bumper. (with rear fog light)
•  Outer mirrors with built-in side turn lights have been adopted.

Function

•  The front body control module (FBCM) sends an exterior light on/off request signal based on the engine switch condition and light switch position signal, and turns the exterior lights on/off.

Lights off function

•  If the ignition is switched ACC or off, the front body control module (FBCM) automatically turns the lights off as follows:

Engine switch condition

Light switch position

Front fog light switch position

Rear fog light switch position

TNS (parking lights) condition

Headlight LO condition

Front fog light condition

Rear fog light condition
ACC or off
OFF
ON
ON
Off
Off
Off
Off
AUTO
ON
ON
Off/On*1
Off
Off
Off
TNS (parking lights)
ON
ON
On
Off
Off
Off
HEAD
ON
ON
On*1
Off
Off
Off

*1  :When 30 s have elapsed or the driver's door is opened after the ignition was switched to ACC or off, the TNS (parking lights) turn off.


Structure/Construction

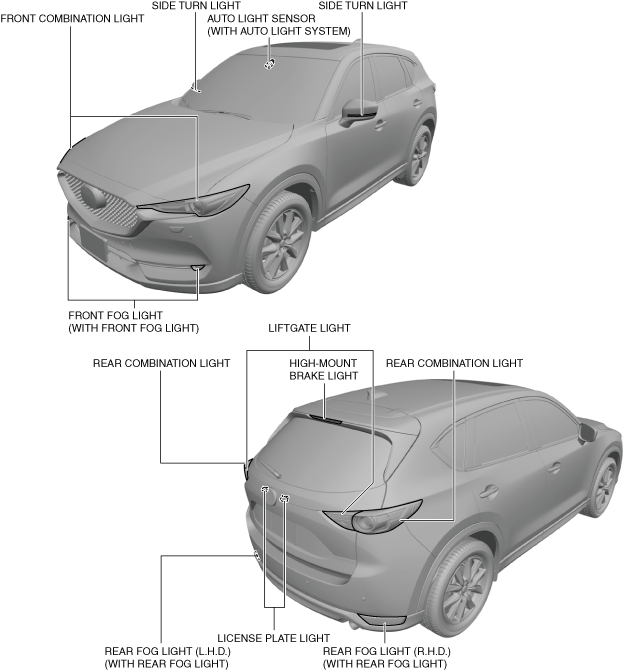

System structure

ac5wzn00003679

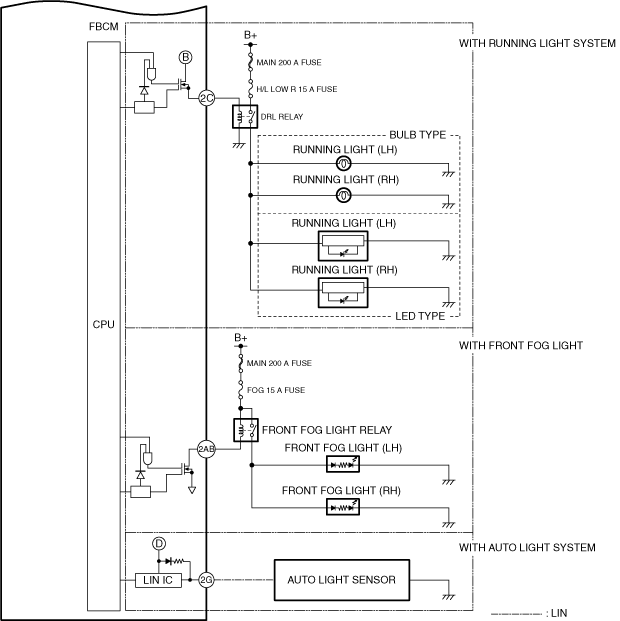

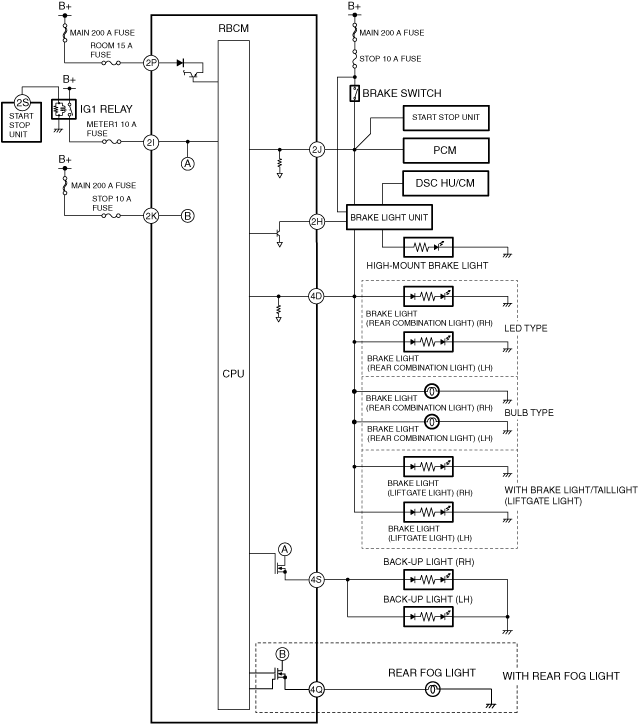

System wiring diagram

ac5uun00002612
ac5uun00002613
ac5wzn00003680
ac5uun00002615


Operation


Headlight HI/LO, parking light, front turn light

•  Refer to the [FRONT COMBINATION LIGHT] and [TURN LIGHT SYSTEM]. (See FRONT COMBINATION LIGHT.)(See TURN LIGHT SYSTEM.)


Running light (with running light system)

•  Refer to the [RUNNING LIGHT SYSTEM]. (See RUNNING LIGHT SYSTEM.)


Front fog light (with front fog light)

•  Refer to the [FRONT FOG LIGHT]. (See FRONT FOG LIGHT.)


Rear fog light (with rear fog light)

•  Refer to the [REAR FOG LIGHT]. (See REAR FOG LIGHT.)


Side turn light

•  Refer to the [SIDE TURN LIGHT] and [TURN LIGHT SYSTEM]. (See SIDE TURN LIGHT.)(See TURN LIGHT SYSTEM.)


Rear turn light, brake light, taillight

•  Refer to the [REAR COMBINATION LIGHT] and [TURN LIGHT SYSTEM]. (See REAR COMBINATION LIGHT.)(See TURN LIGHT SYSTEM.)


Back-up light, brake light (with brake light (liftgate light)), taillight (with taillight (liftgate light))

•  Refer to the [LIFTGATE LIGHT]. (See LIFTGATE LIGHT.)


Hazard warning light

•  Refer to the [FRONT COMBINATION LIGHT], [SIDE TURN LIGHT], and [REAR COMBINATION LIGHT]. (See FRONT COMBINATION LIGHT.)(See SIDE TURN LIGHT.)(See REAR COMBINATION LIGHT.)


High-mount brake light

•  Refer to the [HIGH-MOUNT BRAKE LIGHT]. (See HIGH-MOUNT BRAKE LIGHT.)


License plate light

•  Refer to the [LICENSE PLATE LIGHT]. (See LICENSE PLATE LIGHT.)
