HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

id091800802000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Rear spoiler (See REAR SPOILER REMOVAL/INSTALLATION.)

(3)  Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION.)

3.  Remove the screws.

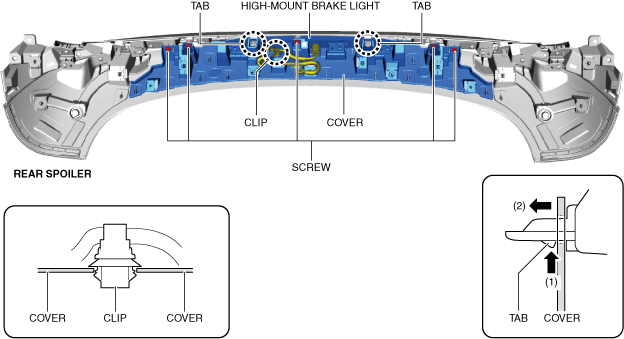

ac5wzw00008714

4.  While pressing the rear spoiler tab in the direction of arrow (1) shown in the figure, pull the cover in the direction of arrow (2) shown in the figure, and detach the rear spoiler tab from the cover.

5.  Remove the clip.

6.  Remove the cover.

7.  Remove the screws.

ac5jjw00008600

8.  Remove the high-mount brake light.

9.  Install in the reverse order of removal.
