•  The low washer fluid level warning indication/low washer fluid level warning light notifies the driver that the remaining washer fluid level in the washer tank is low.

•  When the instrument cluster receives the washer fluid-level sensor on signal sent from the front body control module (FBCM) via CAN communication, it displays/turns on the low washer fluid level warning indication/low washer fluid level warning light

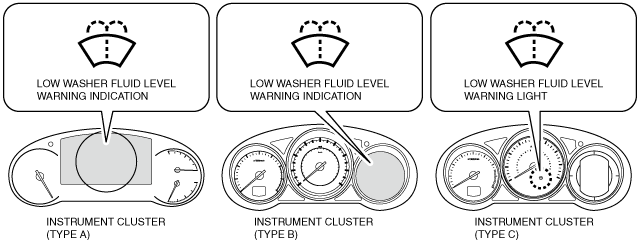

•  The low washer fluid level warning light is built into the instrument cluster. (without multi-information display)

•  The low washer fluid level warning indication is displayed in the multi-information display. (with multi-information display)

am6xun00003967

•  For vehicles with the center display, a warning message is indicated in the center display when the low washer fluid level warning indication/low washer fluid level warning light displays/turns on. For the message content and verification method, refer to the [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

•  For the low washer fluid level warning indication/low washer fluid level warning light operation, refer to the [WASHER FLUID LEVEL WARNING SYSTEM]. (See WASHER FLUID LEVEL WARNING SYSTEM.)

•  Not applicable
