HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION

id091900803300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Disconnect the headlight cleaner motor connector.

ac5wzw00007533

Note

•  If the headlight cleaner motor is removed with washer fluid in the washer tank, the washer fluid may leak out. When removing the headlight cleaner motor from the washer tank, place a container under the washer tank to collect washer fluid, and perform the procedure.

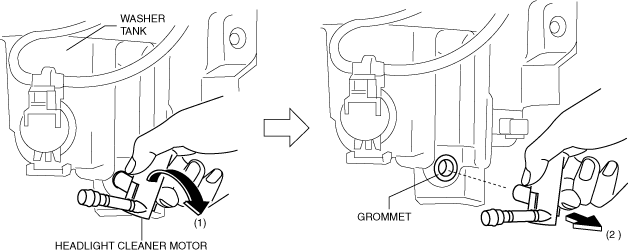

5.  Tilt the upper part of the headlight cleaner motor in the direction of the arrow (1) shown in the figure and remove the headlight cleaner motor from the washer tank in the direction of the arrow (2).

6.  Remove the grommet from the washer tank.

ac5uuw00000823

7.  Install in the reverse order of removal.
