CD PLAYER REMOVAL/INSTALLATION

id092000031000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(5)  Center display component (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(6)  Audio unit (without center display) (See AUDIO UNIT REMOVAL/INSTALLATION.)

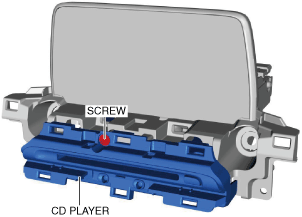

3.  Remove the screw.

ac5wzw00010191

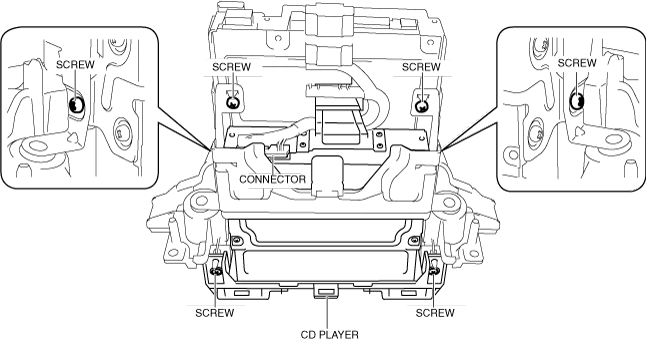

4.  Disconnect the connector.

ac5wzw00010192

5.  Remove the screws.

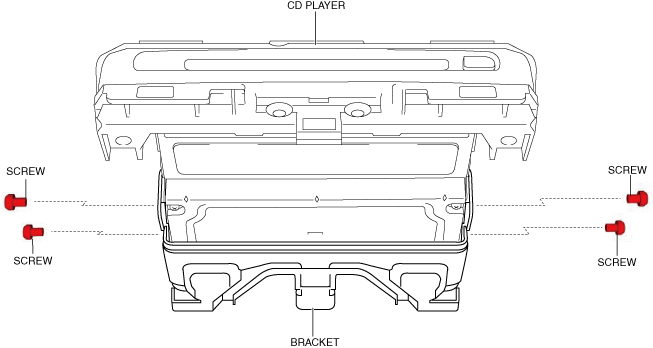

6.  Remove the screws.

ac5wzw00010193

7.  Remove the bracket.

8.  Remove the CD player.

9.  Install in the reverse order of removal.
