AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION

id092000031500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the console-up. (See REAR CONSOLE REMOVAL/INSTALLATION.)

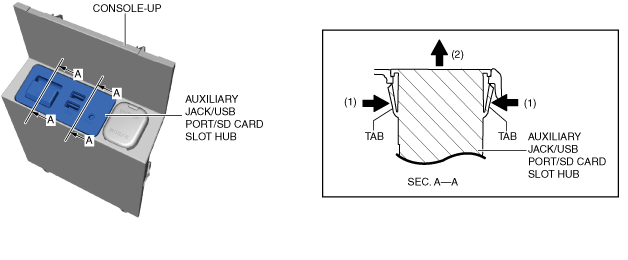

3.  While pressing the tabs of the auxiliary jack/USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port/SD card slot hub from the console-up.

ac5wzw00013226

4.  Remove the auxiliary jack/USB port/SD card slot hub.

5.  Install in the reverse order of removal.
