MONITOR SWITCH INSPECTION

id092000600200

Note

• The monitor switch is integrated with the cluster switch.

• For the monitor switch removal/installation, refer to cluster switch removal/installation. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

Resistance Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

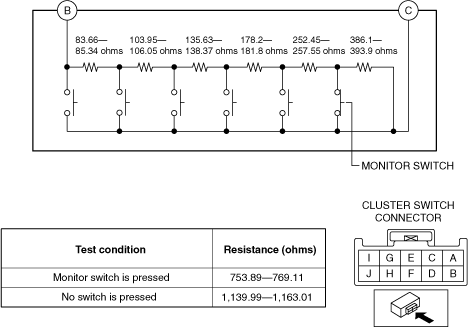

3. Verify that the resistance between cluster switch terminals B and C is as indicated in the table.

ac5wzw00009886

• If not within the specification, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED Illumination Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3. Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.

ac5wzw00009887

4. Verify that the LED is turned on.

• If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
