GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION

id092000801500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(5)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

3.  Remove the screw.

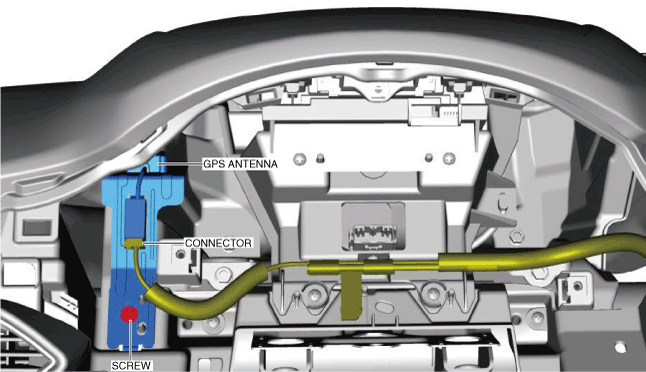

L.H.D.

ac5uuw00006609

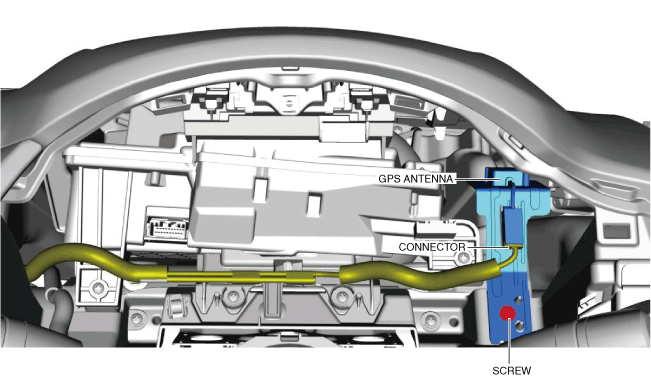

R.H.D.

ac5wzw00009289

4.  Disconnect the connector.

5.  Remove the GPS antenna.

6.  Install in the reverse order of removal.
