AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION

id092000811500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the console up. (See REAR CONSOLE REMOVAL/INSTALLATION.)

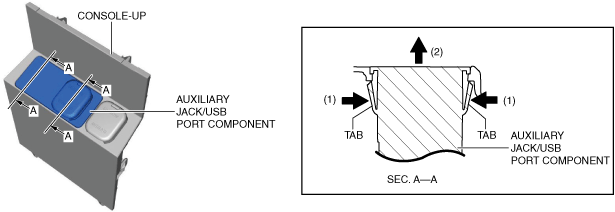

3.  While pressing the tabs of the auxiliary jack/USB port component in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port component in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port component from the console-up.

ac5wzw00013230

4.  While pressing the auxiliary jack/USB port tabs in the direction of the arrows (1) shown in the figure, press the auxiliary jack/USB port in the direction of the arrow (2) to detach the auxiliary jack/USB port tabs from the hole cover.

ac5uuw00005522

5.  Remove the auxiliary jack/USB port.

6.  Install in the reverse order of removal.
