BASS-BOX REMOVAL/INSTALLATION

id092000815200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

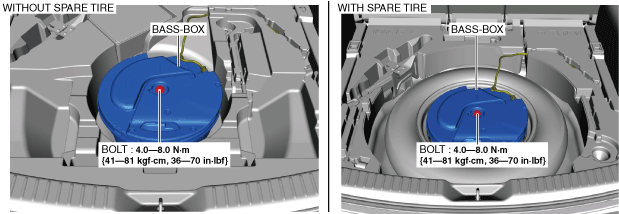

3.  Remove the bolt.

ac5wzw00009291

4.  Disconnect the connector.

ac5wzw00009292

5.  Remove the bass-box and short cord as a single unit.

6.  Install in the reverse order of removal.
