REAR MOUNT CAMERA [WITH CENTER DISPLAY]


id0920zz012700


Purpose

•  The rear mount camera assures visibility at the rear of the vehicle where direct, visual verification from the driver’s seat is not possible.

Functions

•  The rear mount camera sends a video signal to the parking assist unit (optical). (With side camera)
•  The rear mount camera sends a video signal to the connectivity master unit (CMU). (Without side camera)

Guide line display (With fixed assist lines display type)

•  The rear mount camera shoots the conditions at the rear of the vehicle in color, and after converting the video signal, it composes the distance reference lines and vehicle width extension lines on the image shot from the rear of the vehicle.


Predicted vehicle track display (With predicted vehicle path assist lines display type)

•  The rear mount camera shoots the conditions at the rear of the vehicle in color, and after converting the video signal, it composes the distance reference lines, vehicle width extension lines, and the predicted vehicle track lines on the image shot from the rear of the vehicle.


Construction

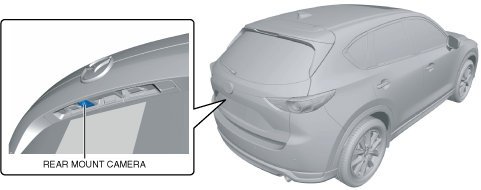

•  The rear mount camera is located on the liftgate garnish.
ac5wzn00004148
•  A super-wide angle lens which can shoot images in a wide parameter is assembled to the compact (1/3.6 in), color CMOS camera which has a high precision CMOS *1 imaging element.
*1  :Complementary Metal-Oxide Semiconductor

Operation

•  For the rear mount camera operation, refer to the [PARKING ASSIST SYSTEM]. (See PARKING ASSIST SYSTEM [WITH CENTER DISPLAY].)

Fail-safe

•  Not applicable
