FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION

id092200031000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

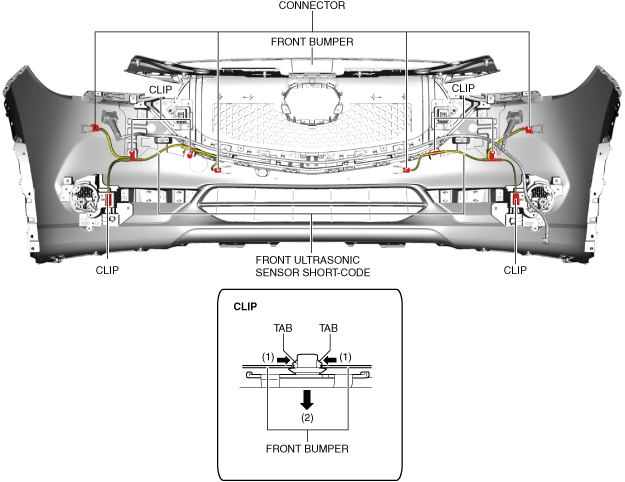

4.  Disconnect the connectors.

ac5wzw00009880

5.  Pull the clip in the direction of the arrow (2) shown in the figure while pressing the tabs of clip in the direction of the arrows (1) shown in the figure, and detach the tabs of the clip and front bumper.

6.  Remove the front ultrasonic sensor short-cord.

7.  Install in the reverse order of removal.
