PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION

id092200042000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

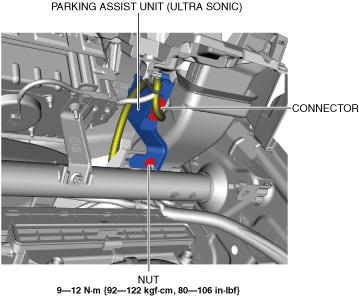

3.  Disconnect the connector.

ac5wzw00009881

4.  Remove the nut.

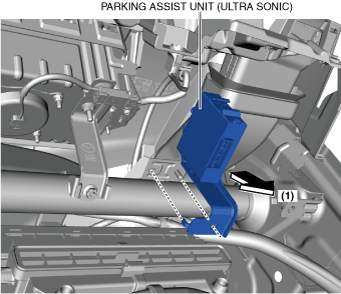

5.  Pull the parking assist unit (ultra sonic) in the direction of the arrow shown in the figure and remove it..

ac5wzw00009882

6.  Install in the reverse order of removal.
