MAZDA ERA-GLONASS SPEAKER REMOVAL/INSTALLATION

id092200666100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

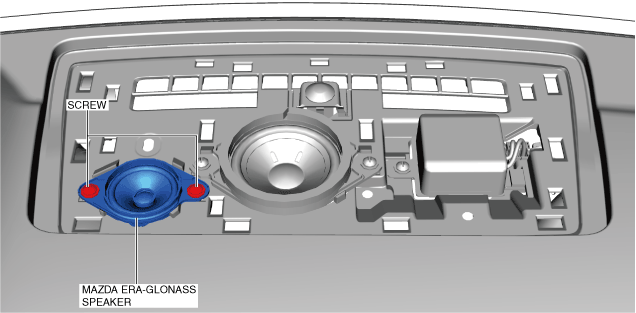

3.  Remove the screws.

ac5wzw00009275

4.  Disconnect the connector.

ac5wzw00009638

5.  Remove the Mazda ERA-GLONASS speaker.

6.  Install in the reverse order of removal.
