ACTIVE AIR SHUTTER REMOVAL/INSTALLATION

id092300000500

Caution

•  If the active air shutter is disassembled and re-assembled, it may not operate normally. Do not disassemble the active air shutter because it is not designed to be disassembled.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Bumper stiffener lower (See BUMPER STIFFENER LOWER REMOVAL/INSTALLATION.)

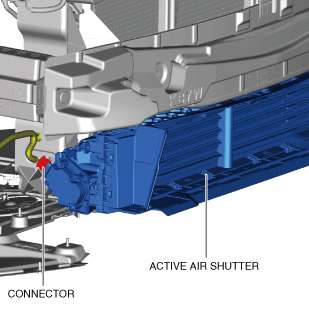

3.  Disconnect the connector.

ac5uuw00007421

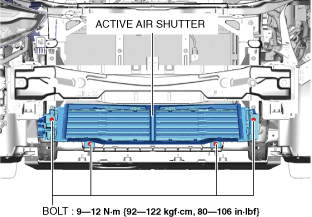

4.  Remove the bolts.

ac5uuw00007422

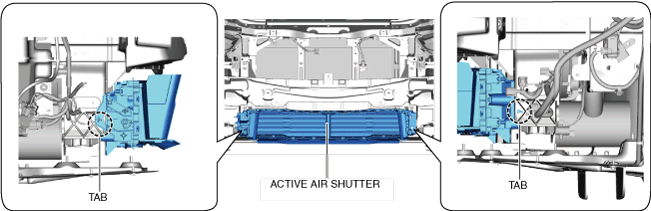

5.  Remove the tabs.

ac5uuw00007423

6.  Remove the active air shutter.

7.  Install in the reverse order of removal.
