MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM

id151000002000


Outline

•  The Mazda radar cruise control (MRCC) system can perform headway control and maintain a constant speed at a set vehicle speed and distance from a vehicle ahead using a radar unit which detects the vehicle ahead without the driver having to depress the accelerator or brake pedal. Additionally, if the detecting vehicle approaches the vehicle ahead too closely such as when the vehicle ahead is braking suddenly, the system alerts the driver using a warning sound and warning indication.
Warning
•  Do not rely completely on the MRCC system and always drive carefully. There are limitations to the distance between the vehicles which can be controlled by the MRCC system, and if the accelerator pedal or brake pedal is mistakenly operated it could result in an accident. Always verify the safety of the surrounding area and depress the brake pedal while keeping a safe distance from the vehicle ahead.
•  The MRCC system does not completely stop the vehicle using the automatic braking operation. Additionally, brake control is performed, however, there are limitations to the deceleration, and the system may be unable to decelerate sufficiently to avoid hitting the vehicle ahead if the vehicle ahead applies the brakes suddenly or another vehicle cuts into the driving lane, which could result in an accident. Always verify the safety of the surrounding area and depress the brake pedal while keeping a safe distance from the vehicle ahead.

Functions

•  The MRCC system is equipped with the following indicated modes.
―  Constant speed control mode: Drives the vehicle at the set vehicle speed set by the driver based on the cruise control switch operation signal.
―  Headway control mode: When a vehicle ahead is detected while the vehicle is traveling in constant speed control mode, headway control with the vehicle ahead is performed while maintaining the set vehicle speed set by the driver and a constant distance between the vehicles.

Mode switching function

•  The modes in the Mazda Radar Cruise Control (MRCC) system can be switched as follows.
Note
•  When switching from constant speed control mode/headway control mode to normal constant speed control mode, the set vehicle speed must be reset. In addition, when switching from normal constant speed control mode to constant speed control mode/headway control mode, the vehicle speed becomes the speed set before switching from normal constant speed control mode.
ac5wzn00005213

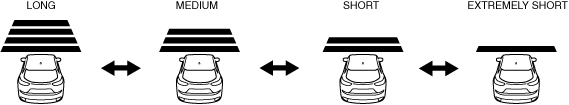

Distance between vehicles setting function

•  Using the DISTANCE switch on the cruise control switch, the distance between vehicles can be controlled at 4 levels, including long→medium→short→extremely short. (Initial setting is set to LONG)
ac9uun00002590
Caution
•  The distances between vehicles indicated below are average values during travel on flat roads and differ depending on the driving and road conditions.

Distance between vehicles table (reference)

Set distance between vehicles

Detecting vehicle speed

0 km/h

{0 mph}

10 km/h

{6.2 mph}

20 km/h

{12 mph}

30 km/h

{19 mph}

40 km/h

{25 mph}

50 km/h

{31 mph}

60 km/h

{37 mph}

70 km/h

{43 mph}

80 km/h

{50 mph}

90 km/h

{56 mph}

100 km/h

{62 mph}

110 km/h

{68 mph}
Long
4 m
{13 ft}
10 m
{32 ft}
17 m
{56 ft}
23 m
{75 ft}
29 m
{95 ft}
36 m
{118 ft}
42 m
{138 ft}
48 m
{157 ft}
55 m
{180 ft}
61 m
{200 ft}
67 m
{220 ft}
74 m
{243 ft}
Medium
4 m
{13 ft}
10 m
{32 ft}
15 m
{49 ft}
19 m
{62 ft}
24 m
{79 ft}
29 m
{95 ft}
34 m
{112 ft}
39 m
{128 ft}
44 m
{144 ft}
49 m
{161 ft}
53 m
{174 ft}
58 m
{190 ft}
Short
4 m
{13 ft}
10 m
{32 ft}
13 m
{43 ft}
16 m
{52 ft}
19 m
{62 ft}
22 m
{72 ft}
25 m
{82 ft}
29 m
{95 ft}
32 m
{105 ft}
36 m
{118 ft}
40 m
{131 ft}
43 m
{141 ft}
Extremely short
4 m
{13 ft}
10 m
{32 ft}
12 m
{39 ft}
13 m
{43 ft}
15 m
{49 ft}
17 m
{56 ft}
20 m
{66 ft}
22 m
{72 ft}
25 m
{82 ft}
27 m
{89 ft}
30 m
{98 ft}
32 m
{105 ft}

Set distance between vehicles

Detecting vehicle speed

120 km/h

{75 mph}

130 km/h

{81 mph}

140 km/h

{87 mph}

150 km/h

{93 mph}

160 km/h

{99 mph}

170 km/h

{106 mph}

180 km/h

{112 mph}

190 km/h

{118 mph}

200 km/h

{124 mph}
Long
80 m
{262 ft}
86 m
{282 ft}
93 m
{305 ft}
99 m
{324 ft}
105 m
{344 ft}
105 m
{344 ft}
105 m
{344 ft}
105 m
{344 ft}
105 m
{344 ft}
Medium
63 m
{207 ft}
68 m
{223 ft}
73 m
{240 ft}
78 m
{255 ft}
83 m
{272 ft}
88 m
{288 ft}
93 m
{305 ft}
98 m
{321 ft}
103 m
{337 ft}
Short
47 m
{154 ft}
50 m
{164 ft}
54 m
{177 ft}
57 m
{187 ft}
61 m
{200 ft}
64 m
{210 ft}
68 m
{223 ft}
72 m
{236 ft}
75 m
{246 ft}
Extremely short
35 m
{115 ft}
38 m
{125 ft}
40 m
{131 ft}
43 m
{141 ft}
45 m
{147 ft}
48 m
{157 ft}
51 m
{167 ft}
53 m
{173 ft}
56 m
{183 ft}


System conditions display function

•  The radar unit displays the system status using the MRCC indicator light (green)/warning light (amber), active driving display/multi-information display, and center display.

Condition

MRCC main indication

MRCC set indication

MRCC warning indication

Multi-information display indication (Instrument cluster (Type A))

Multi-information display indication (Instrument cluster (Type B))

Active driving display indication

Center display
MRCC system is OFF
Off
Off
Off
No display
No display
No display
No display
MRCC system is ON
MRCC system is on standby
On
Off
Off
No display
No display
Vehicle speed is set
Off
On
Off
No display
Vehicle ahead is detected
Off
On
Off
No display
Distance between vehicles is set
Long
Off
On
Off
No display
Medium
Off
On
Off
No display
Short
Off
On
Off
No display
Extremely short
Off
On
Off
No display
MRCC system is ON
Accelerator pedal is depressed
Off
On
Off
No display
No display
Switching from constant speed control mode/headway control mode to normal constant speed control mode
Off
Off
Off
No display
No display
Deceleration exceeding system limits required
Off
Off
Off
No display
MRCC system is automatically canceled due to low vehicle speed
On
Off
Off
No display
Dirty radar unit is detected
Off
Off
On
No display
Warning display*1
Malfunction occurred in MRCC system
Off
Off
On
No display
Warning display*1

*1  :For the warning display content on the center display, refer to the [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

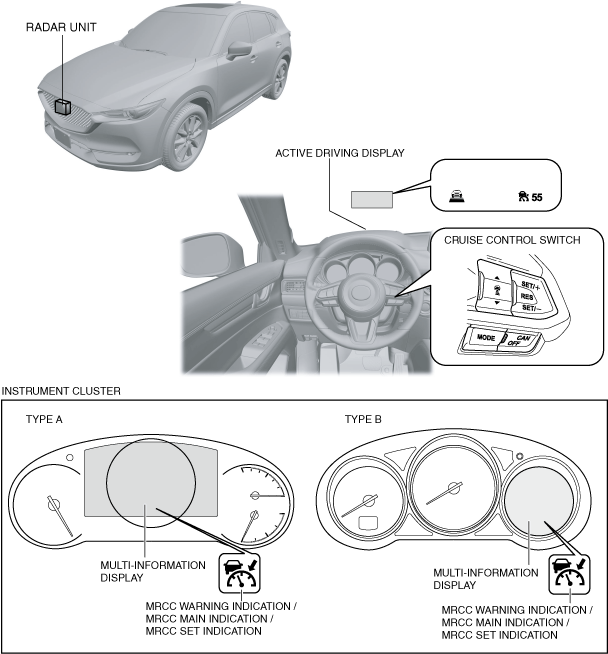

Structural View

ac5wzn00005214

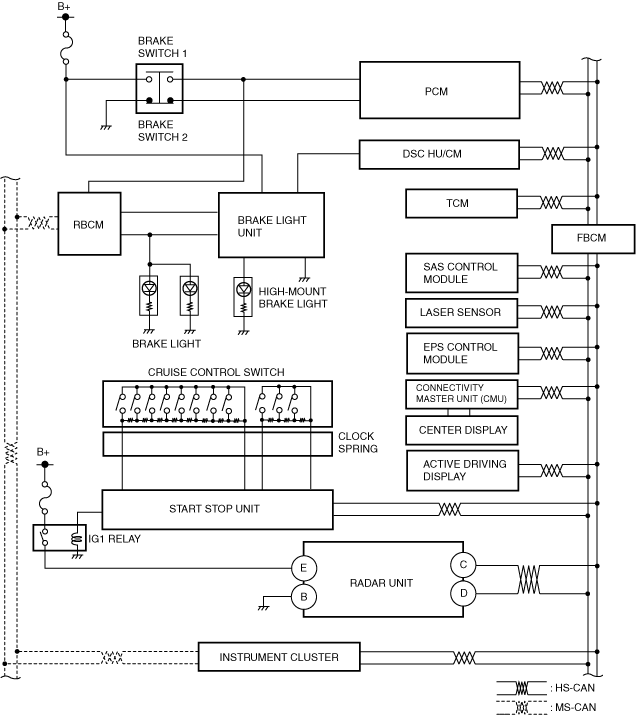

System Wiring Diagram

ac9wzn00001697

Block Diagram

Block diagram (MRCC/SBS/DRSS)

ac9uun00002593

Operation

•  When all of the following conditions are met, the MRCC system goes on operation standby.
Operation condition
―  Selector lever is in D or M position
―  Vehicle speed is within range of approx. 30—200 km/h {19.0—124.0 mph} (European (L.H.D. U.K.) specs.)
―  Vehicle speed is within range of approx. 30—145 km/h {19.0—90.0 mph} (General (L.H.D.) specs.)
―  MRCC system is ON
―  Brake pedal is not depressed
―  DSC is not operating
―  Smart city brake support (SCBS) is not operating
―  Smart brake support (SBS) is not operating
―  Electric parking brake is released
―  Driver seat belt is fastened
―  All doors are closed

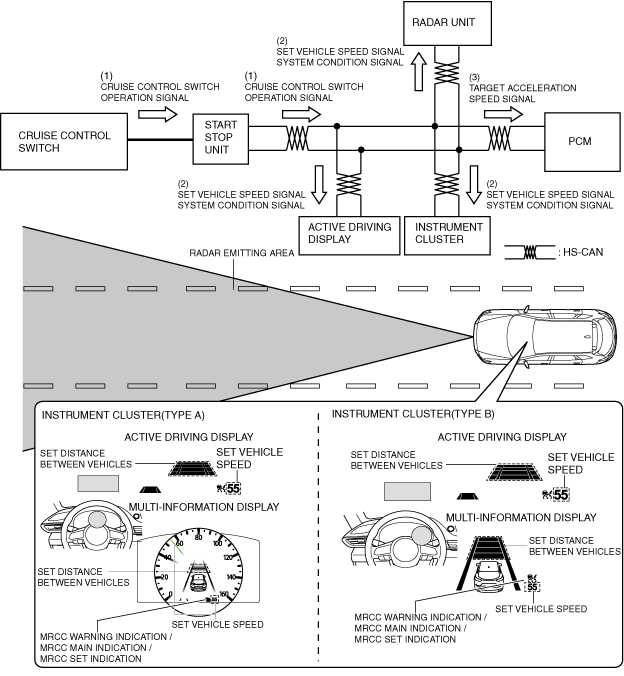

Constant speed control mode

1.  The PCM recognizes the set vehicle speed set by the driver based on the cruise control switch operation signal sent from the start stop unit when the operation conditions are met.
2.  When the PCM recognizes the set vehicle speed, it sends a set vehicle speed signal and system condition signal to the radar unit, instrument cluster, and active driving display.
3.  The radar unit sends a target acceleration speed signal to the PCM based on the set vehicle speed signal and system condition signal.
4.  The PCM performs engine control to maintain the set vehicle speed based on the signal from the radar unit.
5.  The instrument cluster and active driving display display the system operation screen based on the sent vehicle speed signal and system condition signal from the PCM.
Note
•  If the vehicle speed decreases to 20 km/h {12 mph} or less while in constant speed control mode, the radar unit cancels constant speed control mode and switches to standby status.
•  When the radar unit detects the target information while in constant speed control mode, it switches the mode to headway control mode.
ac5wzn00005215

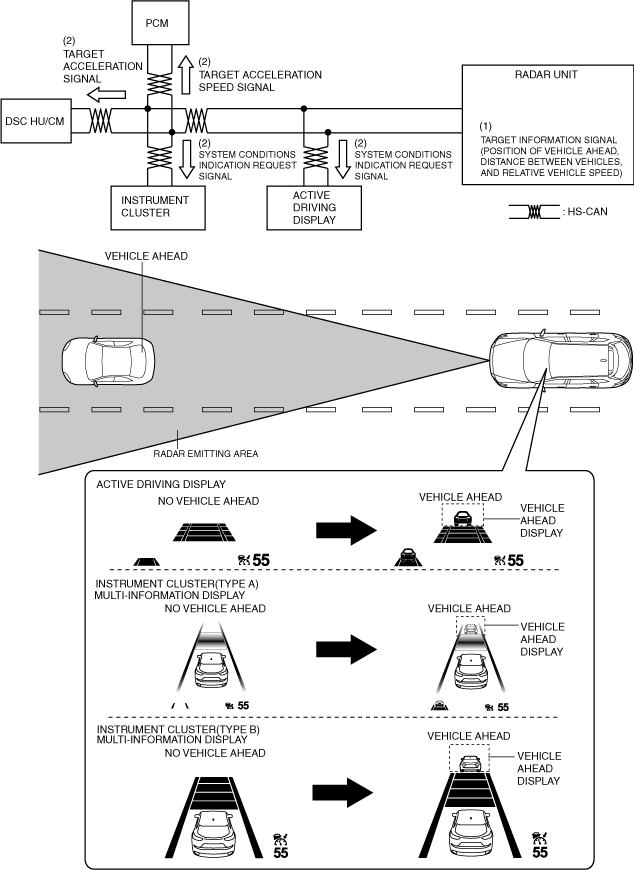

Headway control mode

1.  When the radar unit detects the target information while the vehicle is traveling in constant speed control mode, it switches the mode to headway control mode.
2.  The radar unit calculates the target acceleration speed based on the following, and sends the target acceleration speed signal to the PCM and DSC HU/CM. Additionally, it sends the system conditions indication request signal to the instrument cluster and the active driving display.
―  Distance between vehicles set by driver
―  Target information
―  Detecting vehicle speed
3.  The PCM performs engine control to maintain distance between vehicles based on the signal from the radar unit.
4.  The DSC HU/CM controls braking to maintain distance between vehicles based on the signal from the radar unit.
5.  The instrument cluster and the active driving display display the vehicle ahead screen based on the signal from the radar unit.
Note
•  In the following cases, the system transitions from headway control mode to constant speed mode.
―  Vehicle ahead accelerates over set vehicle speed of detecting vehicle
―  Vehicle ahead or detecting vehicle switches driving lanes, and vehicle ahead of detecting vehicle no longer exists
ac5wzn00005216


Inter-vehicle distance limit warning

•  If any of the following conditions is met, the warning alarm in the instrument cluster is activated and the brake warning in the display is indicated to urge the driver to take action such as braking.
ac5uun00003304
―  Radar unit determines that crash is unavoidable even if automatic braking is performed at maximum possible deceleration rate
―  Vehicle ahead performs emergency braking
