FUEL TANK [SKYACTIV-D 2.2]

id0114z7104100


Purpose, Function

•  Made of steel for weight reduction.

Construction

•  The fuel tank is installed below the rear seat.

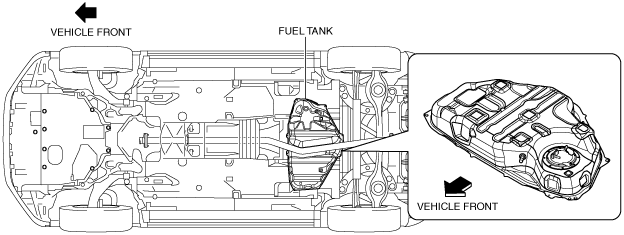

2WD

ac5wzn00000145

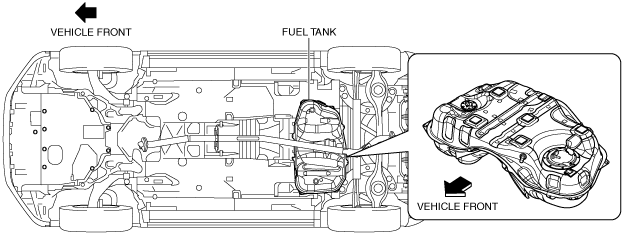

4WD

ac5wzn00000146
•  The fuel tank is made of steel.
•  The following parts are integrated in the fuel tank.
―  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-D 2.2].)
―  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-D 2.2].)

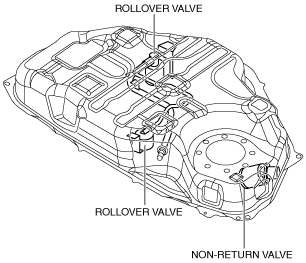

2WD

ac5wzn00000147

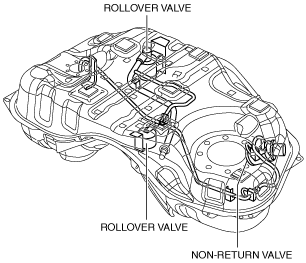

4WD

ac5wzn00000148
