EXHAUST SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0115z9125800


Outline

•  A high compression ratio has been realized by adopting 4-2-1 exhaust pipes and reducing residual gas in the cylinders.
•  The loop structure of the exhaust pipes for the 4-2-1 system takes up less space.

Structural View


2WD

ac5uun00000067


4WD

ac5uun00000068

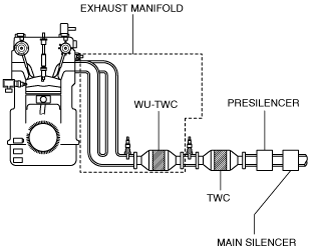

System Diagram

ac5uun00000069

Structure

•  The exhaust system consists of the following parts:

Part name

Reference
Main silencer
(See MAIN SILENCER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Presilencer
(See PRESILENCER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
TWC
(See CATALYTIC CONVERTER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
WU-TWC
Exhaust manifold
(See EXHAUST MANIFOLD [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
