CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1189700

1.  Perform the following procedure.

6:4 split type seat

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

4:2:4 split type seat

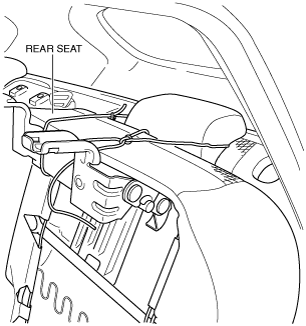

1.  Set the rear seat aside as shown in the figure. (See REAR SEAT REMOVAL/INSTALLATION.)

ac5wzw00004828

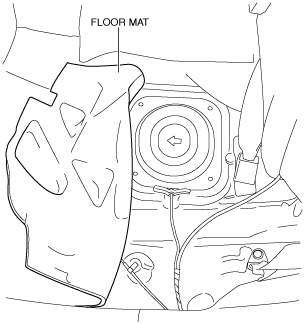

2.  Partially peel back the floor mat as shown in the figure.

ac5wzw00004829

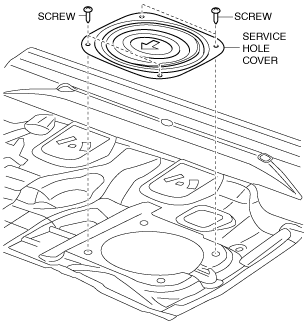

3.  Remove the service hole cover.

ac5wzw00004830

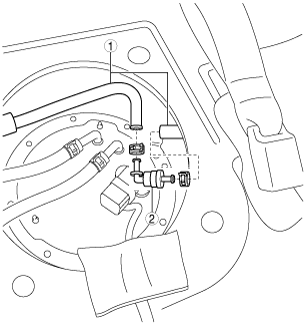

4.  Remove in the order shown in the figure.

ac5jjw00003605

1	Evaporative hose
2	Check valve

5.  Install in the reverse order of removal.
