EMISSION SYSTEM LOCATION INDEX [SKYACTIV-D 2.2]

id0116e1803700

Engine Compartment Side

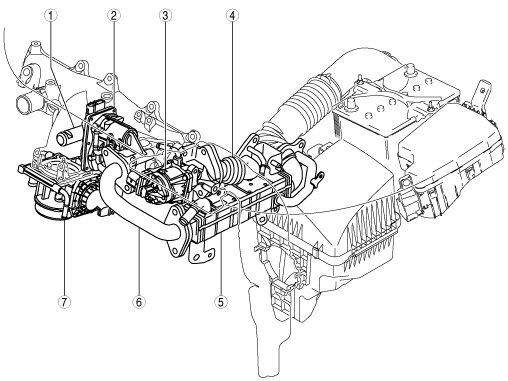

ac5jjw00003545

1	EGR pipe (Intake manifold side) (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EGR VALVE INSPECTION [SKYACTIV-D 2.2].)
3	EGR cooler bypass valve (See EGR COOLER BYPASS VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EGR COOLER BYPASS VALVE INSPECTION [SKYACTIV-D 2.2].)
4	EGR pipe (EGR cooler bypass valve side) (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See EGR COOLER INSPECTION [SKYACTIV-D 2.2].)
6	EGR pipe (EGR valve side) (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
7	Intake shutter valve (See INTAKE SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See INTAKE SHUTTER VALVE INSPECTION [SKYACTIV-D 2.2].)

Exhaust System Side

2WD

ac5jjw00003547

1	Catalytic converter (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4WD

ac5jjw00003546

1	Catalytic converter (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

Fuel Tank Side

2WD

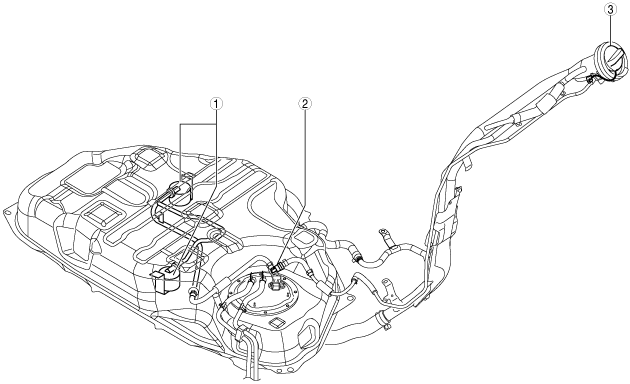

ac5jjw00003548

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-D 2.2].)
2	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CHECK VALVE INSPECTION [SKYACTIV-D 2.2].)
3	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4WD

ac5jjw00003549

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-D 2.2].)
2	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See CHECK VALVE INSPECTION [SKYACTIV-D 2.2].)
3	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
