DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)]

id0117i00046i2

Note

•  The i-ELOOP caution label is adhered to the position shown in the figure below on vehicles with i-ELOOP. When determining if a vehicle in for servicing is equipped with i-ELOOP, refer to the i-ELOOP section. (See DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].)

ac5wzw00008253

Vehicle With i-stop

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

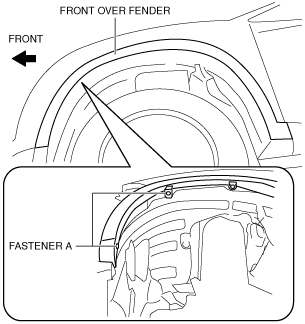

2.  Remove fastener A.

ac5wzw00008282

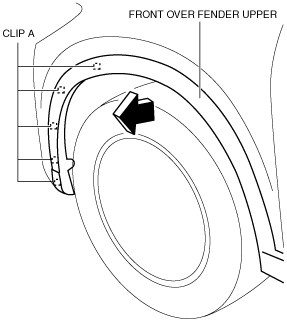

3.  Pull the front over fender upper in the direction of the arrow while removing clip A.

ac5wzw00008324

4.  Remove screw A and bolt A then, partially peel back the front under cover No.1.

ac5wzw00008014

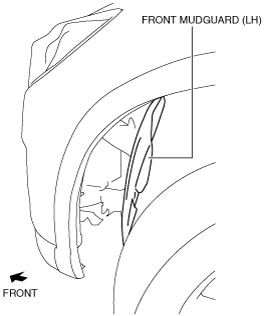

5.  Set the front mudguard (LH) aside as shown in the figure. (See MUDGUARD REMOVAL/INSTALLATION.)

ac5wzw00008280

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

ac5wzw00002643

1	DC-DC converter connector (See DC-DC converter connector installation note.)
2	DC-DC converter

DC-DC converter connector installation note

1.  Before installation, verify that the connector lever is unlocked position.

ac5wzw00002644

2.  Connect the DC-DC converter connector using the following procedure:

(1)  Insert the DC-DC converter connector straight until it stops.

ac5wzw00002645

(2)  Move the connector lever until a click sound is heard.

ac5wzw00002646
