MUDGUARD REMOVAL/INSTALLATION

id091600467600

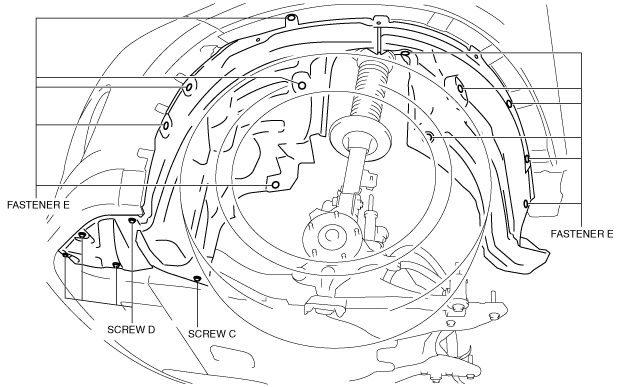

1.  Remove screw A and bolt B then, partially peel back the front under cover No.1.

ac5wzw00001292

2.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

3.  Remove screw C and D.

4.  Remove fasteners E.

ac5wzw00006033

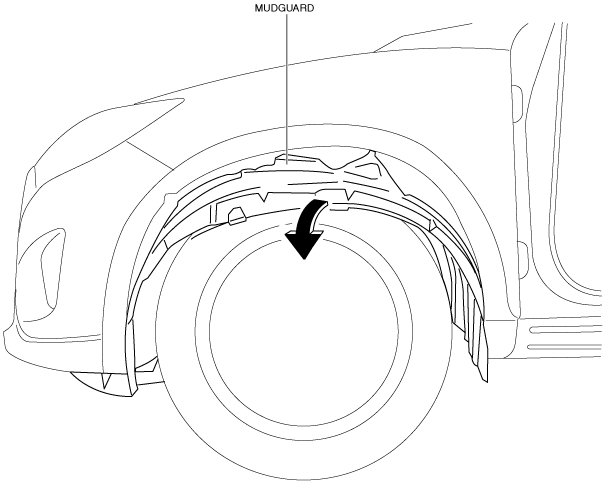

5.  Pull the mudguard in the direction of the arrow shown in the figure.

ac5wzw00001271

6.  Install in the reverse order of removal.
