DYNAMIC STABILITY CONTROL LOCATION INDEX

id041500800500

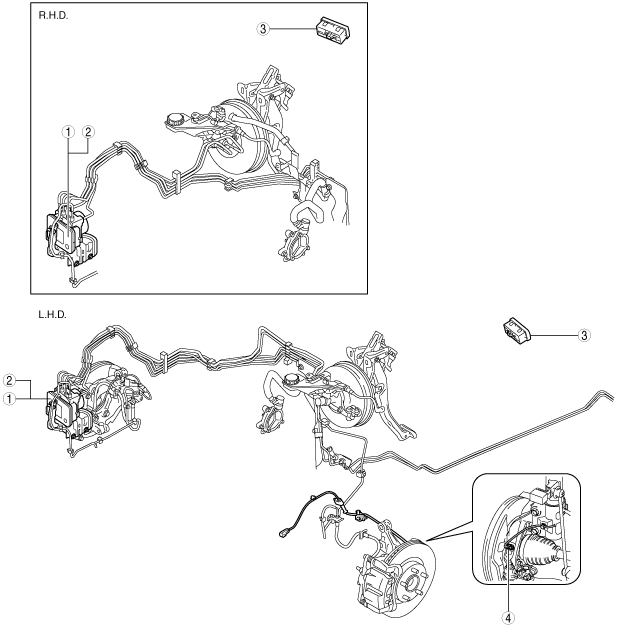

Vehicle front side

ac5wzw00007949

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
3	TCS OFF switch (See TCS OFF SWITCH REMOVAL/INSTALLATION.) (See TCS OFF SWITCH INSPECTION.)
4	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

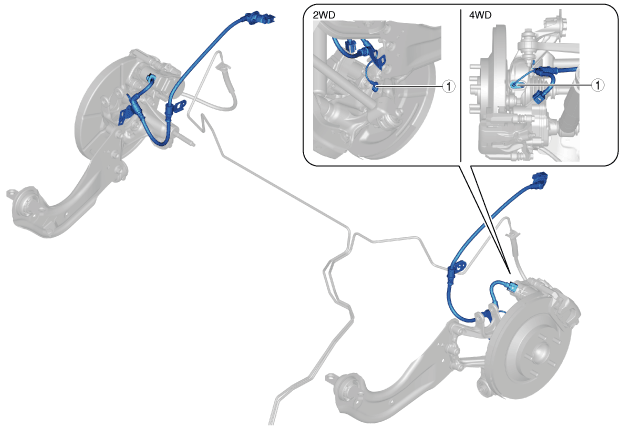

Vehicle rear side

ac5jjw00007467

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [4WD].)
