OIL SEAL (DIFFERENTIAL) REPLACEMENT [C66M-R, C66MX-R]

id0515ma160100

2WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R].)

3.  Disconnect the drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Disconnect the drive shaft (RH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

5.  Remove the oil seal (LH).

ac5uuw00000758

6.  Remove the oil seal (RH).

ac5uuw00000759

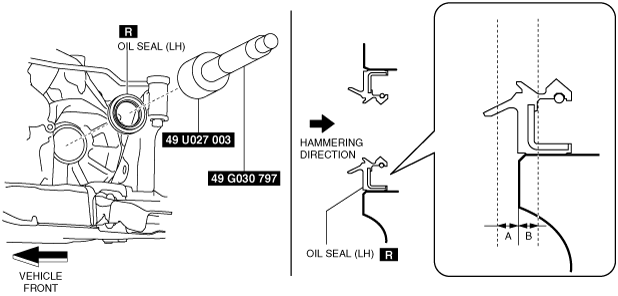

7.  Using the SSTs and a hammer, install a new oil seal (LH).

ac5wzw00007913

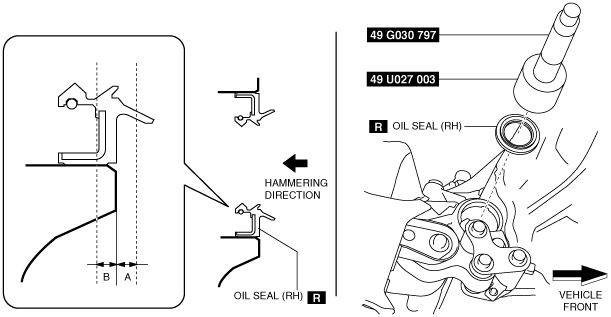

8.  Using the SSTs and a hammer, install a new oil seal (RH).

ac5wzw00007914

9.  Coat the lip of each oil seal with manual transaxle oil.

10.  Install the drive shaft (RH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

11.  Install the drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

12.  Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R].)

13.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R].)

3.  Disconnect the drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Remove the drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

5.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

6.  Remove the exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

7.  Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R].)

8.  Remove the oil seal (LH).

ac5uuw00000758

9.  Remove the oil seal (RH).

ac5wzw00001554

10.  Using the SSTs and a hammer, install a new oil seal (LH).

ac5wzw00007913

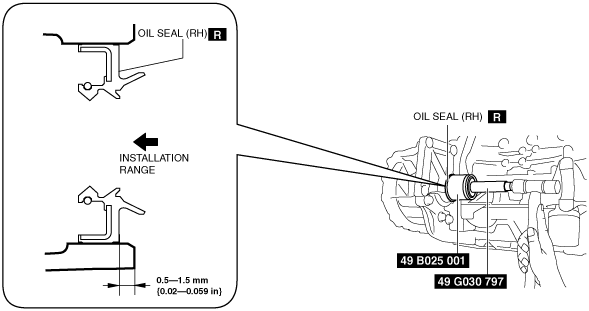

11.  Using the SSTs and a hammer, install a new oil seal (RH).

ac5wzw00007915

12.  Coat the lip of each oil seal with manual transaxle oil.

13.  Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R].)

14.  Install the exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

15.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

16.  Install the drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

17.  Install the drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

18.  Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R].)

19.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
