OIL SEAL (DIFFERENTIAL) REPLACEMENT [D66M-R, D66MX-R]

id0515md160100


2WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

3.  Disconnect the drive shaft (LH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Disconnect the drive shaft (RH) from the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

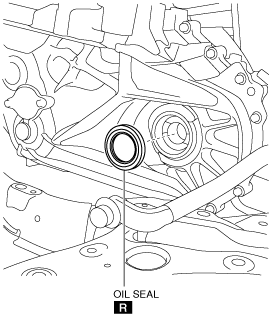

5.  Remove the oil seal (LH).

ac5wzw00003500

6.  Remove the oil seal (RH).

ac5wzw00003501

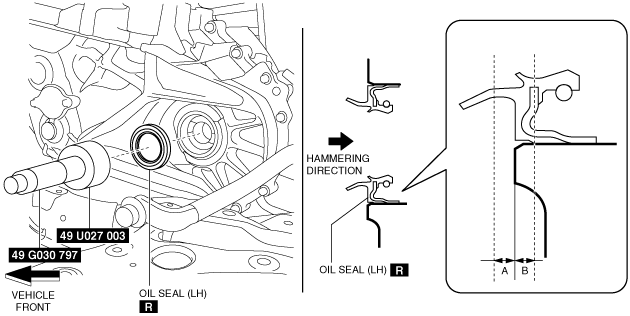

7.  Using the SSTs and a hammer, install a new oil seal (LH).

ac5wzw00007921

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

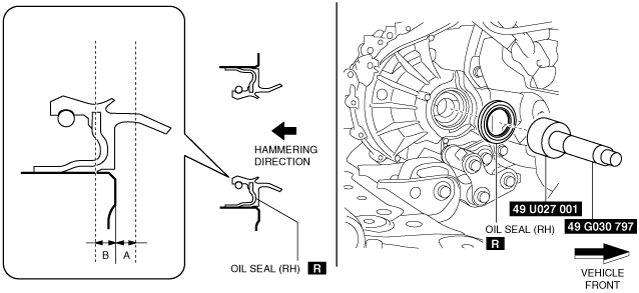

8.  Using the SSTs and a hammer, install a new oil seal (RH).

ac5wzw00007922

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

9.  Coat the lip of each oil seal with manual transaxle oil.

10.  Install the drive shaft (RH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

11.  Install the drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

12.  Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

13.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)


4WD

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

3.  Disconnect the drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Remove the drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

5.  Remove the front crossmember component and No.1 engine mount rubber as a single unit. (4WD) (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

6.  Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [D66MX-R].)

7.  Remove the oil seal (LH).

ac5wzw00003500

8.  Remove the oil seal (RH).

ac5wzw00003502

9.  Using the SSTs and a hammer, install a new oil seal (LH).

ac5wzw00007921

A: 0.3 mm {0.01 in}
B: 0.3 mm {0.01 in}

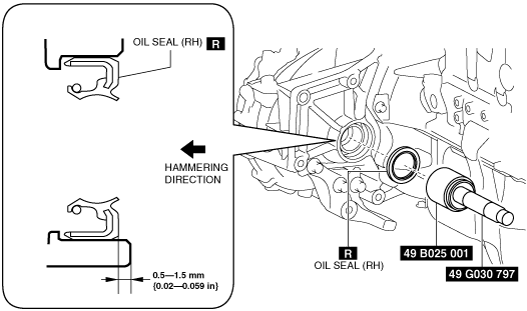

10.  Using the SSTs and a hammer, install a new oil seal (RH).

ac5wzw00007923

11.  Coat the lip of each oil seal with manual transaxle oil.

12.  Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [D66MX-R].)

13.  Install the front crossmember component and No.1 engine mount rubber as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

14.  Install the drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

15.  Install the drive shaft (LH) to the manual transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

16.  Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT [D66M-R, D66MX-R].)

17.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
