CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1802200

1. Remove the climate control unit with the connector connected. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

2. Switch the ignition ON (engine off or on).

3. Connect the negative (-) lead of the tester to body ground.

4. By inserting the positive (+) lead of the tester into each climate control unit terminal, measure the voltage according to the terminal voltage table.

• If there is any malfunction, inspect the parts under “Inspection item (s)”.

― If the parts under “Inspection item (s)” are found to be normal (except for terminal 2D), replace the climate control unit.

― For terminal 2D, first try replacing the blower fan controller. If there is still any malfunction, replace the climate control unit.

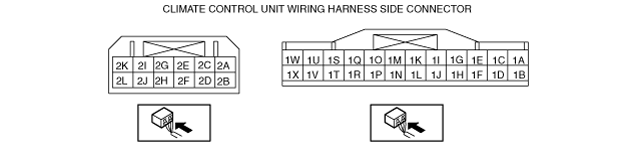

Terminal Voltage Table (Reference)

ac5wzw00008023

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

1A

B+

ROOM 15 A fuse

Under any condition

B+

•  Related wiring harness

•  ROOM 15 A fuse

1B

—

—

—

—

—

1C

IG1

C/U IG1 15 A fuse

Switch the ignition to ON

B+

•  Related wiring harness

•  C/U IG1 15 A fuse

Switch the ignition off

1.0 or less

1D

—

—

—

—

—

1E^*1

Seat warmer switch signal

Seat warmer control unit

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

•  Related wiring harness

1F

—

—

—

—

—

1G

—

—

—

—

—

1H

—

—

—

—

—

1I

—

—

—

—

—

1J

Evaporator temperature sensor input

Evaporator temperature sensor

Compared with temperature detected by evaporator temperature sensor

Refer to graph 1

•  Related wiring harness

•  Evaporator temperature sensor

•  Climate control unit: terminal voltage (1W)

1K

—

—

—

—

—

1L

+5V

•  Driver-side air mix actuator

•  Passenger-side air mix actuator

•  Airflow mode actuator

•  Solar radiation sensor

Under any condition

5

•  Related wiring harness

•  Driver-side air mix actuator

•  Passenger-side air mix actuator

•  Airflow mode actuator

•  Solar radiation sensor

•  Climate control unit: terminal voltage (1W)

1M

—

—

—

—

—

1N

Passenger compartment temperature sensor input

Passenger compartment temperature sensor

Compared with temperature detected by passenger compartment temperature sensor

Refer to graph 2

•  Related wiring harness

•  Passenger compartment temperature sensor

•  Climate control unit: terminal voltage (1W)

1O

MS_CAN_H

CAN related module

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

•  Related wiring harness

1P

Potentiometer input

Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator

Set temperature at MAX HOT

4.3 or more

•  Related wiring harness

•  Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator

•  Climate control unit: terminal voltage (1W)

Set temperature at MAX COLD

1.0 or less

1Q

MS_CAN_L

CAN related module

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

•  Related wiring harness

1R

Potentiometer input

Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator

Set temperature at MAX HOT

4.3 or more

•  Related wiring harness

•  Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator

•  Climate control unit: terminal voltage (1W)

Set temperature at MAX COLD

1.0 or less

1S

—

—

—

—

—

1T

Potentiometer input

Airflow mode actuator

VENT

4.3 or more

•  Related wiring harness

•  Airflow mode actuator

•  Climate control unit: terminal voltage (1W)

BI-LEVEL

3.4

HEAT

2.5

HEAT/DEF

1.6

DEFROSTER

0.72 or less

1U

GND

Body ground

Under any condition

1.0 or less

•  Related wiring harness

1V

Solar radiation sensor (RH) input

Solar radiation sensor

Sunlight shined directly on the solar radiation sensor

4

•  Related wiring harness

•  Climate control unit: terminal voltage (1L)

•  Solar radiation sensor

Blocking light to solar radiation sensor

1.0 or less

1W

Sensor GND

•  Driver-side air mix actuator

•  Passenger-side air mix actuator

•  Passenger compartment temperature sensor

•  Airflow mode actuator

•  Evaporator temperature sensor

Under any condition

1.0 or less

•  Related wiring harness

•  Climate control unit: terminal voltage (1L)

1X

Solar radiation sensor (LH) input

Solar radiation sensor

Sunlight shined directly on the solar radiation sensor

4

•  Related wiring harness

•  Climate control unit: terminal voltage (1L)

•  Solar radiation sensor

Blocking light to solar radiation sensor

1.0 or less

2A

—

—

—

—

—

2B

—

—

—

—

—

2C

IG2

Front body control module (FBCM)

Switch the ignition ON (engine off or on)

B+

•  Related wiring harness

•  Front body control module (FBCM)

Switch the ignition off

3.36 or less

2D

Blower fan speed control

Blower fan controller

(See Blower Fan Speed Control Signal)

•  Related wiring harness

•  Blower fan controller

2E

Motor operation (HOT)

Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator

Moving towards HOT

B+

•  Related wiring harness

•  Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator

Moving towards COLD

1.0 or less

2F

Motor operation (HOT)

Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator

Moving towards HOT

B+

•  Related wiring harness

•  Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator

Moving towards COLD

1.0 or less

2G

Motor operation (COLD)

Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator

Moving towards HOT

1.0 or less

•  Related wiring harness

•  Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator

Moving towards COLD

B+

2H

Motor operation (COLD)

Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator

Moving towards HOT

1.0 or less

•  Related wiring harness

•  Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator

Moving towards COLD

B+

2I

Motor operation (VENT)

Airflow mode actuator

Moving towards VENT

B+

•  Related wiring harness

•  Airflow mode actuator

Moving towards DEFROSTER

1.0 or less

2J

Motor operation (FRESH)

Air intake actuator

Moving towards RECIRCULATE

1.0 or less

•  Related wiring harness

•  Air intake actuator

Moving towards FRESH

B+

2K

Motor operation (DEFROSTER)

Airflow mode actuator

Moving towards DEFROSTER

B+

•  Related wiring harness

•  Airflow mode actuator

Moving towards VENT

1.0 or less

2L

Motor operation (RECIRCULATE)

Air intake actuator

Moving towards RECIRCULATE

B+

•  Related wiring harness

•  Air intake actuator

Moving towards FRESH

1.0 or less

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)	Inspection item (s)
1A	B+	ROOM 15 A fuse	Under any condition	B+	• Related wiring harness • ROOM 15 A fuse
1B	—	—	—	—	—
1C	IG1	C/U IG1 15 A fuse	Switch the ignition to ON	B+	• Related wiring harness • C/U IG1 15 A fuse
Switch the ignition off	1.0 or less
1D	—	—	—	—	—
1E^*1	Seat warmer switch signal	Seat warmer control unit	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	• Related wiring harness
1F	—	—	—	—	—
1G	—	—	—	—	—
1H	—	—	—	—	—
1I	—	—	—	—	—
1J	Evaporator temperature sensor input	Evaporator temperature sensor	Compared with temperature detected by evaporator temperature sensor	Refer to graph 1	• Related wiring harness • Evaporator temperature sensor • Climate control unit: terminal voltage (1W)
1K	—	—	—	—	—
1L	+5V	• Driver-side air mix actuator • Passenger-side air mix actuator • Airflow mode actuator • Solar radiation sensor	Under any condition	5	• Related wiring harness • Driver-side air mix actuator • Passenger-side air mix actuator • Airflow mode actuator • Solar radiation sensor • Climate control unit: terminal voltage (1W)
1M	—	—	—	—	—
1N	Passenger compartment temperature sensor input	Passenger compartment temperature sensor	Compared with temperature detected by passenger compartment temperature sensor	Refer to graph 2	• Related wiring harness • Passenger compartment temperature sensor • Climate control unit: terminal voltage (1W)
1O	MS_CAN_H	CAN related module	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	• Related wiring harness
1P	Potentiometer input	Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator	Set temperature at MAX HOT	4.3 or more	• Related wiring harness • Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator • Climate control unit: terminal voltage (1W)
Set temperature at MAX COLD	1.0 or less
1Q	MS_CAN_L	CAN related module	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.	• Related wiring harness
1R	Potentiometer input	Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator	Set temperature at MAX HOT	4.3 or more	• Related wiring harness • Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator • Climate control unit: terminal voltage (1W)
Set temperature at MAX COLD	1.0 or less
1S	—	—	—	—	—
1T	Potentiometer input	Airflow mode actuator	VENT	4.3 or more	• Related wiring harness • Airflow mode actuator • Climate control unit: terminal voltage (1W)
BI-LEVEL	3.4
HEAT	2.5
HEAT/DEF	1.6
DEFROSTER	0.72 or less
1U	GND	Body ground	Under any condition	1.0 or less	• Related wiring harness
1V	Solar radiation sensor (RH) input	Solar radiation sensor	Sunlight shined directly on the solar radiation sensor	4	• Related wiring harness • Climate control unit: terminal voltage (1L) • Solar radiation sensor
Blocking light to solar radiation sensor	1.0 or less
1W	Sensor GND	• Driver-side air mix actuator • Passenger-side air mix actuator • Passenger compartment temperature sensor • Airflow mode actuator • Evaporator temperature sensor	Under any condition	1.0 or less	• Related wiring harness • Climate control unit: terminal voltage (1L)
1X	Solar radiation sensor (LH) input	Solar radiation sensor	Sunlight shined directly on the solar radiation sensor	4	• Related wiring harness • Climate control unit: terminal voltage (1L) • Solar radiation sensor
Blocking light to solar radiation sensor	1.0 or less
2A	—	—	—	—	—
2B	—	—	—	—	—
2C	IG2	Front body control module (FBCM)	Switch the ignition ON (engine off or on)	B+	• Related wiring harness • Front body control module (FBCM)
Switch the ignition off	3.36 or less
2D	Blower fan speed control	Blower fan controller	(See Blower Fan Speed Control Signal)	• Related wiring harness • Blower fan controller
2E	Motor operation (HOT)	Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator	Moving towards HOT	B+	• Related wiring harness • Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator
Moving towards COLD	1.0 or less
2F	Motor operation (HOT)	Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator	Moving towards HOT	B+	• Related wiring harness • Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator
Moving towards COLD	1.0 or less
2G	Motor operation (COLD)	Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator	Moving towards HOT	1.0 or less	• Related wiring harness • Driver-side (L.H.D.) / passenger-side (R.H.D.) air mix actuator
Moving towards COLD	B+
2H	Motor operation (COLD)	Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator	Moving towards HOT	1.0 or less	• Related wiring harness • Passenger-side (L.H.D.) / driver-side (R.H.D.) air mix actuator
Moving towards COLD	B+
2I	Motor operation (VENT)	Airflow mode actuator	Moving towards VENT	B+	• Related wiring harness • Airflow mode actuator
Moving towards DEFROSTER	1.0 or less
2J	Motor operation (FRESH)	Air intake actuator	Moving towards RECIRCULATE	1.0 or less	• Related wiring harness • Air intake actuator
Moving towards FRESH	B+
2K	Motor operation (DEFROSTER)	Airflow mode actuator	Moving towards DEFROSTER	B+	• Related wiring harness • Airflow mode actuator
Moving towards VENT	1.0 or less
2L	Motor operation (RECIRCULATE)	Air intake actuator	Moving towards RECIRCULATE	B+	• Related wiring harness • Air intake actuator
Moving towards FRESH	1.0 or less

*1 :With seat warmer

Blower Fan Speed Control Signal

Fan stopped

ac5jjw00007748

Climate control unit terminal

• 2D(+)—body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)

Manual 1st

ac5jjw00007749

Climate control unit terminal

• 2D(+)—body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)

• Airflow mode: VENT

• Air intake mode: RECIRCULATE

Manual 3rd

ac5jjw00007750

Climate control unit terminal

• 2D(+)—body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)

• Airflow mode: VENT

• Air intake mode: RECIRCULATE

Manual 7th

ac5jjw00007751

Climate control unit terminal

• 2D(+)—body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition ON (engine off or on)

• Airflow mode: VENT

• Air intake mode: RECIRCULATE
