CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1807400

Note

•  The climate control unit prior to replacement stores the vehicle specification information.

•  The new climate control unit does not store any vehicle specification information.

•  When the ignition is switched ON after the climate control unit is replaced, the climate control unit reads the vehicle specification information sent via CAN transmission from the instrument cluster, and stores the vehicle specification information.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(5)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(8)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

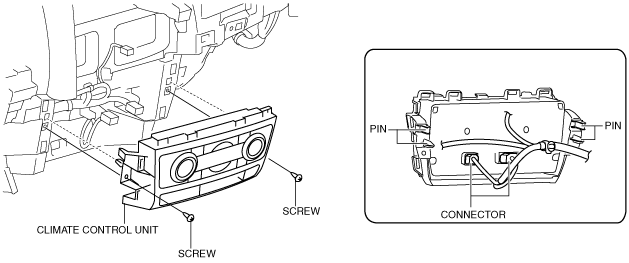

3.  Remove the screws.

ac5wzw00007354

4.  Remove the climate control unit while detaching the pins.

5.  Disconnect the connectors.

6.  Install in the reverse order of removal.

7.  Switch the ignition ON and perform the climate control unit automatic configuration.

8.  Perform the DTC inspection for the climate control unit using the M-MDS. (See FOREWORD [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)

•  If a DTC is detected, perform troubleshooting according to the DTC. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
