AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1802400

L.H.D.

Driver-side

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Driver-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the air mix actuator connector.

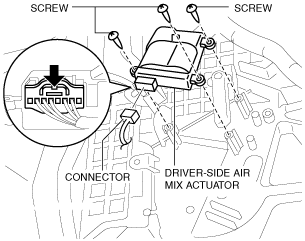

ac5wzw00007347

4.  Remove the screws.

5.  Remove the driver-side air mix actuator.

6.  Install in the reverse order of removal.

Passenger-side

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Disconnect the air mix actuator connector.

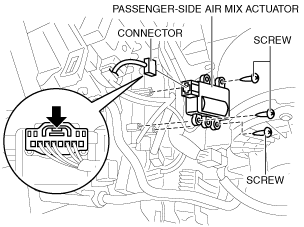

ac5wzw00007348

4.  Remove the screws.

5.  Remove the passenger-side air mix actuator.

6.  Install in the reverse order of removal.

R.H.D.

Driver-side

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Driver-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the air mix actuator connector.

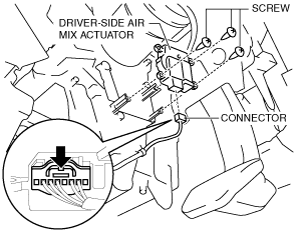

ac5wzw00007349

4.  Remove the screws.

5.  Remove the driver-side air mix actuator.

6.  Install in the reverse order of removal.

Passenger-side

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Disconnect the air mix actuator connector.

ac5wzw00007350

4.  Remove the screws.

5.  Remove the passenger-side air mix actuator.

6.  Install in the reverse order of removal.
