LIFTGATE REMOVAL/INSTALLATION

id091100521200

Warning

•  Removing the stay damper, liftgate hinge securing bolt, or liftgate without supporting the liftgate may cause the liftgate to fall off and injure you. When removing the stay damper, liftgate hinge, or liftgate, always use two persons to perform the work.

Note

•  If the rear rear mount camera is replaced, perform the parking assist system initialization (calibration). (with European (L.H.D. U.K.) specs.) (See PARKING ASSIST SYSTEM INITIALIZATION (CALIBRATION).)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

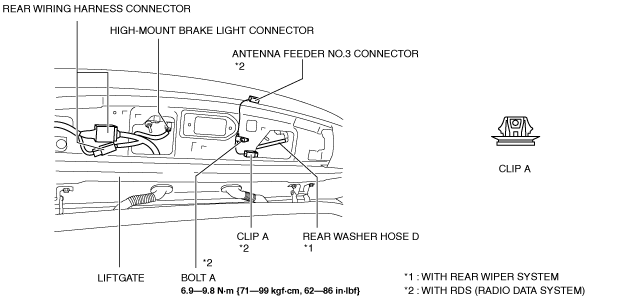

3.  Disconnect the connectors shown in the figure.

ac5wzw00003067

4.  Disconnect rear washer hose D. (with rear wiper system)

5.  Remove bolt A. (with RDS (radio data system))

6.  Remove clip A. (with RDS (radio data system))

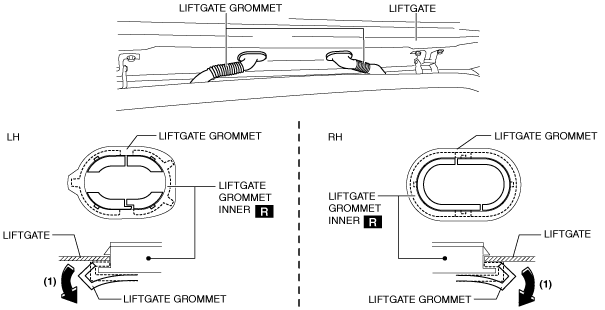

7.  Partially peel the liftgate grommet in the direction of arrow (1) shown in the figure, and remove the liftgate grommet from the liftgate grommet inner.

ac5wzw00004865

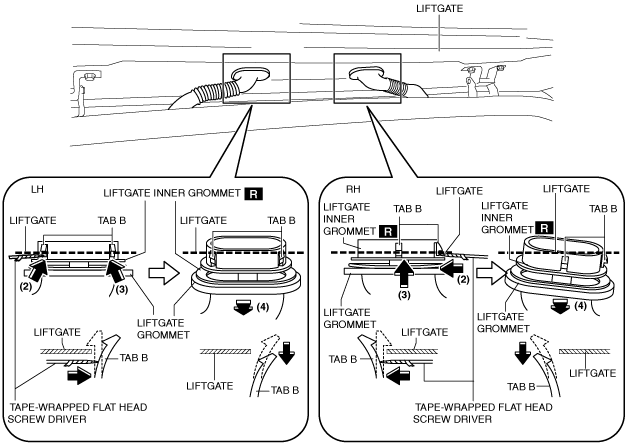

8.  Using a tape-wrapped flathead screwdriver, press the liftgate grommet inner tabs B in the directions of arrows (2) and (3) shown in the figure and remove the liftgate grommet inner from the liftgate in the direction of arrow (4).

ac5wzw00003068

9.  Remove rear washer hose D from the liftgate and set them aside. (with rear wiper system)

10.  Remove the wiring harness from the liftgate and set them aside.

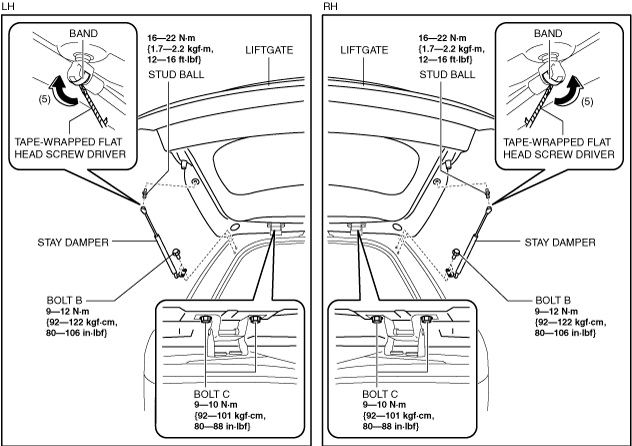

11.  Using a tape-wrapped flathead screwdriver, remove the stay damper securing band in the direction of arrows (5) shown in the figure.

ac5uuw00000863

12.  Remove bolts C.

13.  Remove the stay dampers.

14.  Remove the stud balls.

15.  Remove bolts D.

16.  Remove the liftgate.

17.  Install in the reverse order of removal.

18.  Adjust the liftgate. (See LIFTGATE ADJUSTMENT.)
