LIFTGATE ADJUSTMENT

id091100521400

1. Measure the gap and height difference between the liftgate and the body.

2. Loosen the liftgate hinge installation bolts and adjust the liftgate.

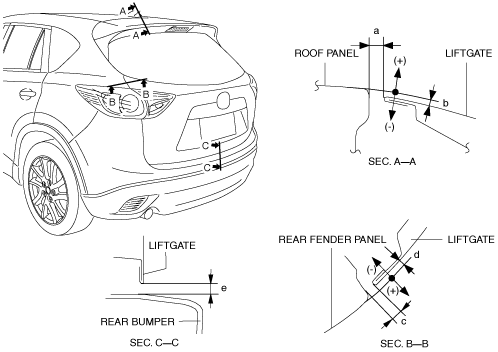

ac5wzw00003758

Standard clearance

a: 5.2―7.2 mm {0.21―0.28 in}

b: -2.0―0 mm {-0.078―0.000 in}

c: 3.8―6.2 mm {0.15―0.24 in}

d: -1.6―0.8 mm {-0.06―0.03 in}

e: 3.8―7.8 mm {0.15―0.30 in}

3. Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION.)

4. If the liftgate does not open/close smoothly, adjust it by loosening the liftgate lock striker installation screw. (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)

5. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
