POWER WINDOW MOTOR INSPECTION

id091200001700


Auto-open/close Function For All Windows


Front power window motor

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

3.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

4.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the power window motor connector.

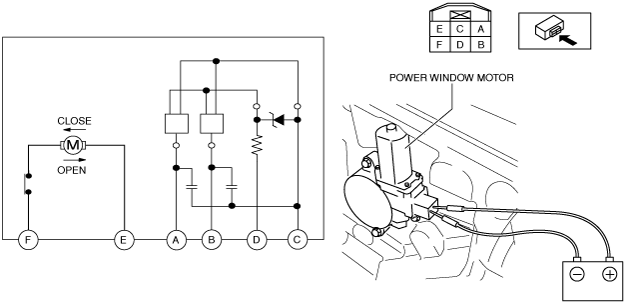

6.  Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

ac5wzw00001236

•  If the power window motor does not operate as indicated in the table, replace it.

Operation

Terminal

E

F
Open
B+
Ground
Close
Ground
B+

7.  Connect the front power window motor connector.

8.  Connect the power window main switch connector. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

9.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

10.  Operate the power window motor and verify the wave patterns for terminals A and B.

ac5wzw00004644

•  Terminal:
A, B(+) ↔ ground (-)
•  Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
•  If the malfunction, replace the power window motor.


Rear power window motor

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the power window motor connector.

5.  Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

ac5wzw00001236

•  If the power window motor does not operate as indicated in the table, replace it.

Operation

Terminal

E

F
Open
B+
Ground
Close
Ground
B+

6.  Connect the rear power window motor connector.

7.  Connect the power window subswitch connector. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

8.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

9.  Operate the power window motor and verify the wave patterns for terminals A and B.

ac5wzw00004644

•  Terminal:
A, B(+) ↔ ground (-)
•  Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
•  If the malfunction, replace the power window motor.


Auto-open/close Function For Driver-side


Front power window motor (for driver-side)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

3.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

4.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the power window motor connector.

6.  Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

ac5wzw00001236

•  If the power window motor does not operate as indicated in the table, replace it.

Operation

Terminal

E

F
Open
B+
Ground
Close
Ground
B+

7.  Connect the front power window motor connector.

8.  Connect the power window main switch connector. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

9.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

10.  Operate the power window motor and verify the wave patterns for terminals A and B.

ac5wzw00004644

•  Terminal:
A, B(+) ↔ ground (-)
•  Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
•  If the malfunction, replace the power window motor.


Front power window motor (for passenger-side)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the power window motor connector.

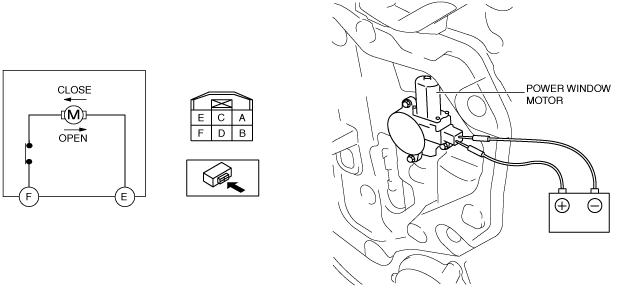

5.  Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

ac5wzw00001237

•  If the power window motor does not operate as indicated in the table, replace it.

Operation

Terminal

E

F
Close
B+
Ground
Open
Ground
B+


Rear power window motor

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the power window motor connector.

4.  Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

ac5wzw00001237

•  If the power window motor does not operate as indicated in the table, replace it.

Operation

Terminal

E

F
Close
B+
Ground
Open
Ground
B+
