CONSOLE LID HINGE REMOVAL/INSTALLATION

id091700607500

1.  Remove the console lid. (See CONSOLE LID REMOVAL/INSTALLATION.)

2.  Remove the inner console lid. (See CONSOLE LID REMOVAL/INSTALLATION.)

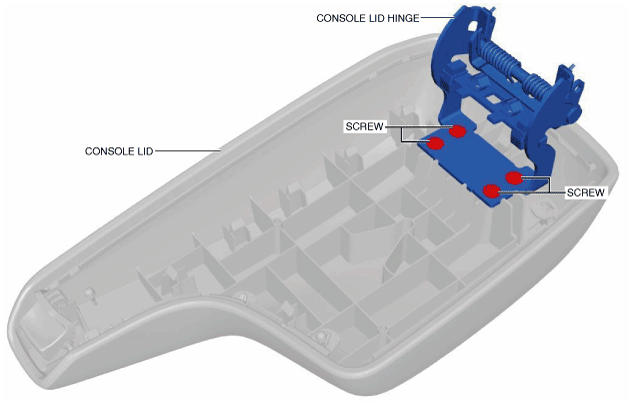

3.  Remove the screw.

ac5uuw00003688

4.  Remove the console lid hinge.

5.  Install in the reverse order of removal.
