ROOM LIGHT CONTROL SYSTEM

• The room light control system changes the engine switch condition, illumination condition and illumination level of the interior lights (door position) according to whether the doors are opened/closed and locked/unlocked.

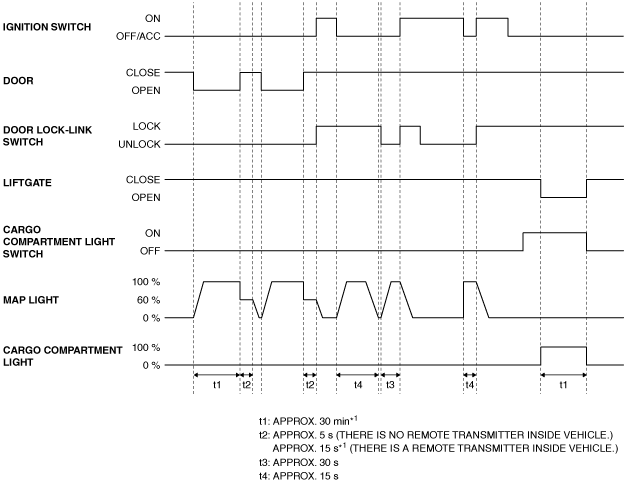

Operation condition	Interior light		Lights off condition (Any of the following conditions is met)
Operation condition	Illumination period	Brightness level
With ignition switched off or ACC and all doors closed (all door latch switches are off), a condition is detected when any door is opened (any door latch switch is on)	Approx. 30 min^*1	100 %	• After illumination time elapses^*2 • All doors other than liftgate closed (all door latch switches off)
With any door opened (any door latch switch is on) while ignition is switched off or ACC, a condition is detected when all doors are closed (all door latch switches are off)	• Approx. 5 s^3 • Approx. 15 s^{1, *4}	60 %	• After illumination time elapses • Driver's door lock knob locked (door lock-link switch at LOCK position) • Ignition switched ON (engine off or on)
With all doors closed (all door latch switches are off) while ignition is switched off or ACC, the door lock link switch is switched from lock to unlock	Approx. 30 s	100 %	• After illumination time elapses • Driver's door lock knob locked (door lock-link switch at LOCK position) • Ignition switched ON (engine off or on)
With all doors closed (all door latch switches are off) while ignition is switched ACC or ON (engine off or on), the ignition switched off condition is detected	Approx. 15 s	100 %	• After illumination time elapses • Driver's door lock knob locked (door lock-link switch at LOCK position) • Ignition switched ON (engine off or on)
Liftgate is open with cargo compartment light switch on	Approx. 30 min^*1	100 %	• After illumination time elapses^*5 • liftgate closed • Cargo compartment light switch turned off

*1 :Illumination time can be changed using the Mazda Modular Diagnostic System (M-MDS) or center display (with center display). (See LIGHTING SYSTEM PERSONALIZATION.)

*2 :When any of the following conditions is met after the interior lights turn off according to the off conditions, the lights turn on again.

― The ignition is switched ON (engine off or on).

― After closing all doors, any door is opened again. (All door latch switches off, then any door latch switch is on)

*5 :When any of the following conditions is met after the cargo compartment light turns off according to the off conditions, the light turns on again.

― The ignition is switched ON (engine off or on).

― After liftgate is closed, and then opened again. (Liftgate latch switch off, then switch on)

― Any door is opened/closed. (Any door latch switch on, then switch off)

― Door is locked/unlocked. (Door lock-link switch locked, then switch unlocked)

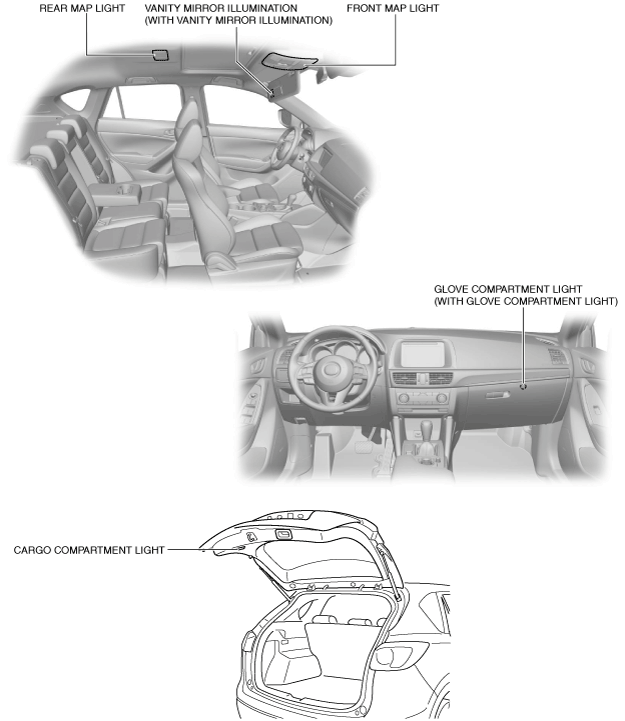

Type	Room light control system
Front map light	Front area of roof	×
Rear map light	Center area of roof	×
Cargo compartment light	Cargo compartment^*1	×
Vanity mirror illumination	Sunvisor	—
Glove compartment light	Glove compartment	—

*1 :Illumination time can be changed using the Mazda Modular Diagnostic System (M-MDS) or center display (with center display). (See LIGHTING SYSTEM PERSONALIZATION.)
