CAMERA LIGHT

id091800091800


Purpose

•  The camera light improves visibility at the left front side of the vehicle when the side camera is shooting images.

Function

•  Parking assist unit (optical) turns the camera light on and off based on the following signals:

Signal name

Sending module/part name

Communication method
Ignition switch condition signal
IG1 relay
Hard wire
Camera changing switch condition signal
Camera changing switch
Vehicle speed signal
Instrument cluster
MS-CAN
Headlight condition signal


Construction

•  Camera light built into the outer mirrors have been adopted.
•  LED type camera light has been adopted.

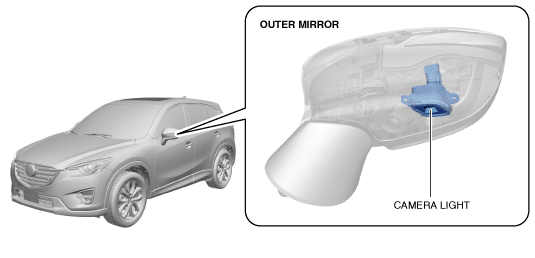

ac5wzn00003052

Operation

Note
•  For the operation condition, refer to the [PARKING ASSIST SYSTEM]. (See PARKING ASSIST SYSTEM [WITH CENTER DISPLAY].)

1.  When the operation conditions are met (1), the parking assist unit (optical) turns the camera light on (2).

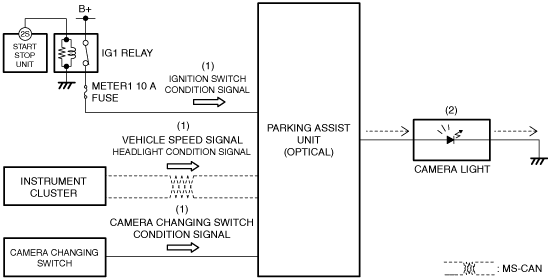

ac5wzn00003053

Fail-safe

•  Not applicable
