CAMERA LIGHT REMOVAL/INSTALLATION

id091800814900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Remove the upper outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

4.  Remove the lower outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

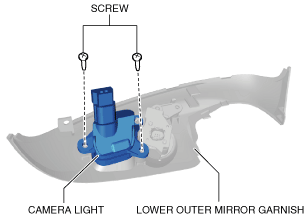

5.  Remove the screw.

ac5wzw00007468

6.  Remove the camera light.

ac5wzw00007469

7.  Install in the reverse order of removal.
