TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION

id092000031200

L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Disconnect the connectors.

ac5wzw00007691

4.  Pull out the wiring harness clip.

5.  Remove the nuts.

ac5wzw00007692

6.  Remove the tuner and amp unit (TAU) component.

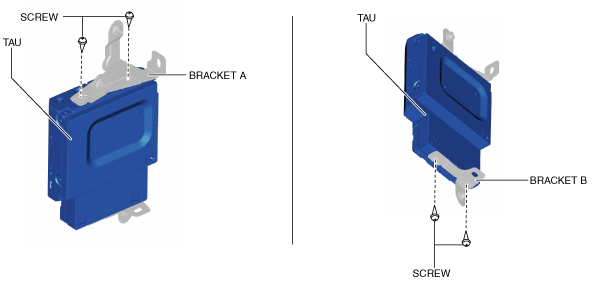

7.  Remove the screws.

ac5wzw00007693

8.  Remove the brackets A and B.

9.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

3.  Disconnect the connectors.

ac5wzw00007694

4.  Pull out the wiring harness clip.

5.  Remove the nuts.

ac5wzw00007692

6.  Remove the tuner and amp unit (TAU) component.

7.  Remove the screws.

ac5wzw00007693

8.  Remove the brackets A and B.

9.  Install in the reverse order of removal.
