CENTER DISPLAY REMOVAL/INSTALLATION

id092000031300

Removal

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

3.  Remove the bolt.

ac5wzw00007716

4.  Remove the screws.

Note

•  When removing the center display, the center display could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.

ac5wzw00007717

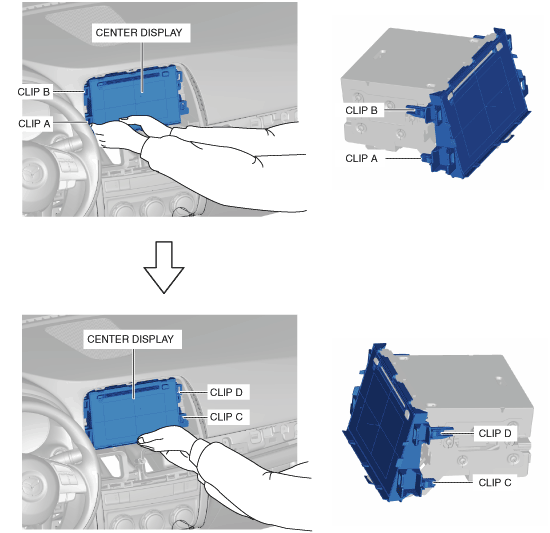

5.  Hold the center display in the position shown in the figure and pull it outward to disengage clips A, B, C, and D from the instrument panel.

ac5wzw00007718

6.  Disconnect the connectors.

ac5wzw00007719

7.  Remove the center display component.

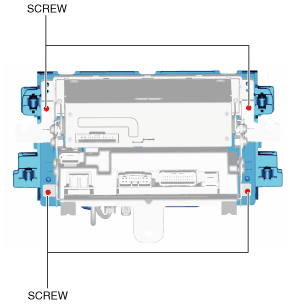

8.  Remove the screws.

ac5wzw00007720

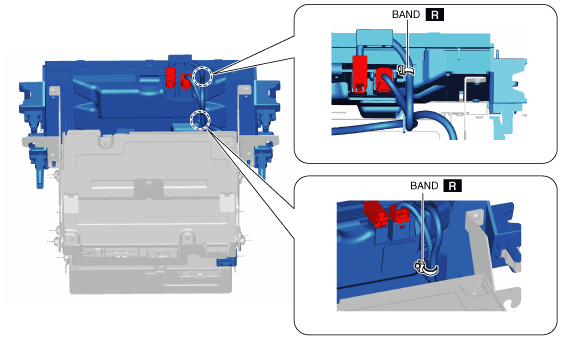

9.  Cut the bands shown in the figure.

ac5wzw00007721

10.  Disconnect the connectors.

ac5wzw00007722

11.  Remove the center display.

Installation

Note

•  When installing the center display, the center display could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.

ac5wzw00007723

1.  Install the center display.

ac5wzw00007722

2.  Connect all the connectors.

3.  Install the bands shown in the figure.

ac5wzw00007721

4.  Install the screws.

ac5wzw00007720

5.  Connect all the connectors.

ac5wzw00007719

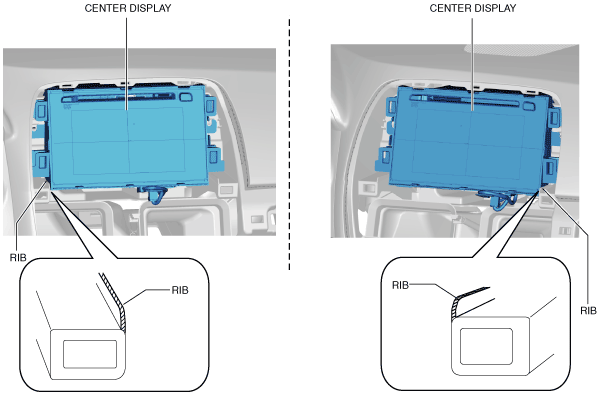

6.  Temporarily position the center display on the ribs and align the hole positions of the instrument panel with clips.

ac5wzw00007724

7.  Press the shaded area in the position shown in the figure and engage clips to the instrument panel.

ac5wzw00007725

Caution

•  If the center display switch area and screen are pressed it could cause a malfunction.

8.  Install the screws.

ac5wzw00007716

9.  Install the bolt.

10.  Install the following parts:

(1)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

11.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
