CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION

id092100900600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(3)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R, C66MX-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

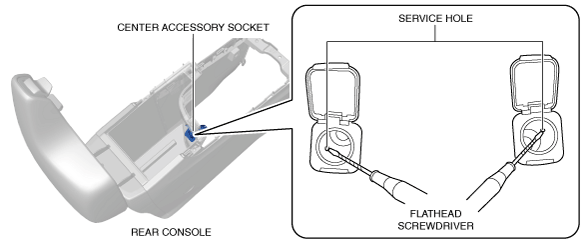

3.  Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

ac5uuw00004240

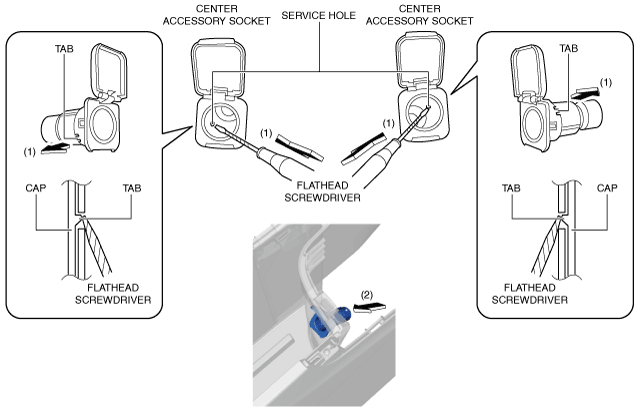

4.  While pressing the cap tab in the direction of arrow (1) shown in the figure, push out the center accessory socket in the direction of arrow (2) to detach the cap tab from the socket.

ac5uuw00004241

5.  Pull the center accessory socket in the direction of the arrow shown in the figure and remove it.

ac5uuw00004242

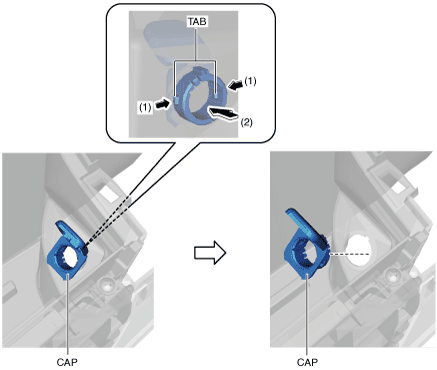

6.  While pressing the cap tabs in the direction of arrows (1) shown in the figure, press the cap in the direction of arrow (2) to detach the cap tabs from the rear console.

ac5uuw00004243

7.  Remove the cap.

8.  Install in the reverse order of removal.
